Purchase NT6828, In-stock NT6828 From SeekIC.
MFG:NT D/C:DIP
Part Number: NT6828
MFG: NT
D/C: DIP
Description: NT6828 is designed for displaying symbols and characters onto a CRT monitor. Its operation is controll...
- Table of contents:
NT6828
-
Suppliers
DataSheet
General Description
NT6828 General Description
NT6828 is designed for displaying symbols and characters onto a CRT monitor. Its operation is controlled by the micro-controller with I2C bus interface. By sending the proper data and commands to NT6828, it can carry out the full screen display automatically while the time base is generated by the on-chip PLL circuit. There are many functions provided on this chip to fully support numerous user applications. These functions are: adjustment of OSD windows position, built-in ROM & RAM fonts, variable character height with row-to-row spacing adjustment, 8 color selections for each character, double height/width controls for each row, four available overlapping windows with color & size controls, as well as other I/O interfaces to compliment an external video chipset.
NT6828 provides eight optional PWM channels with 8-bit resolution for external digital to analog control.
NT6828 Maximum Ratings
DC Supply Voltage . . . . . . . . . . . . -0.3V to +7.0V
VCC (measured to GND) . . . . . . . 4.75V to 5.25V
Operating Temperature . . . . . . . . . . .0 to +70
VCC (measured to GND) . . . . . . . 4.75V to 5.25V
Operating Temperature . . . . . . . . . . .0 to +70
NT6828 Features
· I2C Bus Interface with Slave Address $7A (Receiver Only)
· Horizontal Frequency Range: 30KHz ~ 120KHz
· Flexible Display Resolution: up to 1524 dots per row
· Internal PLL Generating a Stable and Wide-Ranged System Clock (92.2 MHz)
· OSD Screen Comprising of Character Arrays of 15 Rows by 30 Columns
· 12 X 18 Dot Matrix Per Character
· Total of 256 Fonts Including 248 ROM Fonts and 8 RAM Fonts
· Programmable Vertical and Horizontal Position Adjustment for OSD Display Position
· 8-Color Selection for Each Character and 8-Color Control on Each Row with Overlapped by Windows
· Character Blinking, Shadowing & Bordering Display Effects
· Double Character Height and Width for Each Row
· Programmable Height of Characters Display
· Row To Row Spacing Control
· Four Overlapping and Programmable Windows with 8-Color Control
· Hsync & Vsync Input Polarity Selectable
· 8 Channels PWM DAC with 8 bits resolution & Open-Drain Output Structure
· 16 DIP and 24 Skinny DIP packages
· Horizontal Frequency Range: 30KHz ~ 120KHz
· Flexible Display Resolution: up to 1524 dots per row
· Internal PLL Generating a Stable and Wide-Ranged System Clock (92.2 MHz)
· OSD Screen Comprising of Character Arrays of 15 Rows by 30 Columns
· 12 X 18 Dot Matrix Per Character
· Total of 256 Fonts Including 248 ROM Fonts and 8 RAM Fonts
· Programmable Vertical and Horizontal Position Adjustment for OSD Display Position
· 8-Color Selection for Each Character and 8-Color Control on Each Row with Overlapped by Windows
· Character Blinking, Shadowing & Bordering Display Effects
· Double Character Height and Width for Each Row
· Programmable Height of Characters Display
· Row To Row Spacing Control
· Four Overlapping and Programmable Windows with 8-Color Control
· Hsync & Vsync Input Polarity Selectable
· 8 Channels PWM DAC with 8 bits resolution & Open-Drain Output Structure
· 16 DIP and 24 Skinny DIP packages

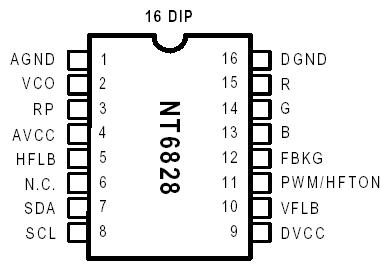

NT6828 Connection Diagram
NT6828
