Product Details

Description



Features:

· Composed of Four Individual Amplifiers
· Low Power Consumption
· High Gain
· Superior AGC Characteristics


Pinout

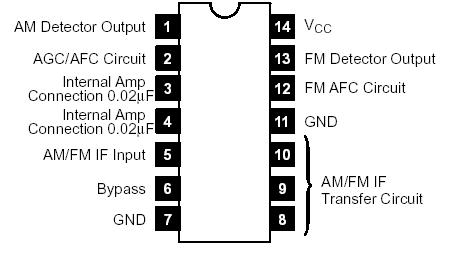

Connection Diagram


Specifications

Maximum Supply Voltage (Pin14), VCCmax . . . . . . . . . . . . . . . . . . . . . . . . . .. . 10V
Maximum Supply Voltage (Pin8, Pin13), V8, V13  . . . . . . . . . . . . . . . . . . . .. . . .10V
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . .20° to +75°C
Storage Temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . .40° to +125°C


Description

The NTE1003 monolithic integrated circuit is a high grade FM/AM intermediate frequency amplifier in a 14Lead DIP type package composed of four individual amplifiers and a voltage regulator.
