Part Number: NTE989
Description: The NTE989 is a general purpose Phase Locked Loop (PLL) in a 14Lead DIP type package containing a stab...
- Table of contents:
NTE989
-
Suppliers
DataSheet
General Description
NTE989 General Description
The NTE989 is a general purpose Phase Locked Loop (PLL) in a 14Lead DIP type package containing a stable, highly linear voltage controlled oscillator for low distortion FM demodulation, and a double balanced phase detector with good carrier suppression. The VCO frequency is set with an external resistor and capacitor, and tuning range of 10:1 can be obtained with the same capacitor.
The characteristics of the closed loop systembandwidth, response speed, capture and pull in range may be adjusted over a wide range with an external resistor and capacitor. The loop may be broken between the VCO and the phase detector for insertion of a digital frequency divider to obtain frequency multiplication.
NTE989 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±12V
Power Dissipation (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300mW
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±1V
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to +70
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to +150
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300
Note 1. The maximum junction temperature of the NTE989 is 100. Thermal resistance for this device is 100/W.
Power Dissipation (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300mW
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±1V
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to +70
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to +150
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300
Note 1. The maximum junction temperature of the NTE989 is 100. Thermal resistance for this device is 100/W.
NTE989 Features
` 200ppm/ frequency stability of the VCO
` Power supply range of ±5 to ±12 volts with 100ppm/% typical
` 0.2% linearity of demodulated output
` Linear triangle wave with in phase zero crossings available
` TTL and DTL compatible phase detector input and square wave output
` Adjustable hold in range from ±1% to > ±60%
` Power supply range of ±5 to ±12 volts with 100ppm/% typical
` 0.2% linearity of demodulated output
` Linear triangle wave with in phase zero crossings available
` TTL and DTL compatible phase detector input and square wave output
` Adjustable hold in range from ±1% to > ±60%
NTE989 Typical Application
· Data and tape synchronization
· Modems
· FSK demodulation
· FM demodulation
· Frequency synthesizer
· Tone decoding
· Frequency multiplication and division
· SCA demodulators
· Telemetry receivers
· Signal regeneration
· Coherent demodulators
· Modems
· FSK demodulation
· FM demodulation
· Frequency synthesizer
· Tone decoding
· Frequency multiplication and division
· SCA demodulators
· Telemetry receivers
· Signal regeneration
· Coherent demodulators

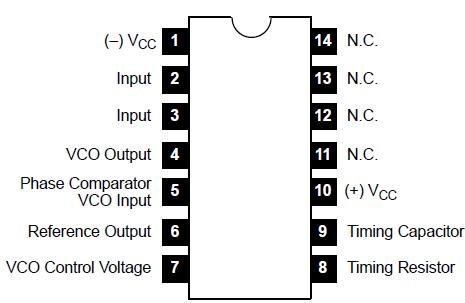

NTE989 Connection Diagram
