NUP4201DR2

TVS Diode Arrays Low Cap. TVS Array

product image

NUP4201DR2 Picture
See larger image
SeekIC No. : 00226102 Detail

NUP4201DR2: TVS Diode Arrays Low Cap. TVS Array

NUP4201DR2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NUP4201DR2
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Polarity : Unidirectional Channels : 4 Channels
Clamping Voltage : 12 V Operating Voltage : 5 V
Package / Case : SOIC-8 Breakdown Voltage : 6 V
Series : NUP4201DR2 Packaging : Reel

Description

Capacitance :
Minimum Operating Temperature :
Maximum Operating Temperature :
Polarity : Unidirectional
Channels : 4 Channels
Packaging : Reel
Package / Case : SOIC-8
Breakdown Voltage : 6 V
Operating Voltage : 5 V
Clamping Voltage : 12 V
Series : NUP4201DR2


Features:

• SO−8 Package
• Peak Power − 500 Watts 8 x 20 S
• ESD Rating:
IEC 61000−4−2 (ESD) 15 kV (air) 8 kV (contact)
IEC 61000−4−4 (EFT) 40 A (5/50 ns)
IEC 61000−4−5 (lightning) 23 (8/20 s)
• UL Flammability Rating of 94V−0


Application

• High Speed Communication Line Protection
• USB Power and Data Line Protection
• Video Line Protection
• Base Stations
• HDSL, IDSL Secondary IC Side Protection
• Microcontroller Input Protection


Pinout

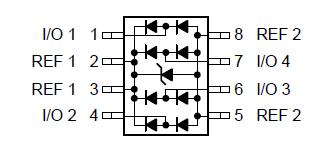

Connection Diagram


Specifications

Rating
Symbol
Value
Unit
Peak Power Dissipation
8 x 20 S @ TA = 25°C (Note 1)
Ppk
500
W
Junction and Storage
Temperature Range
TJ, Tstg
−55 to +150
°C
Lead Solder Temperature −
Maximum 10 Seconds Duration
TL
260
°C

1. Non−repetitive current pulse 8 x 20 S exponential decay waveform


Parameters:

Technical/Catalog InformationNUP4201DR2
VendorON Semiconductor (VA)
CategoryCircuit Protection
Package / Case8-SOIC (3.9mm Width)
PackagingCut Tape (CT)
Polarization4 Channel Array - Unidirectional
Power (Watts)500W
Voltage - Reverse Standoff (Typ)5V
Voltage - Breakdown6V
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names NUP4201DR2
NUP4201DR2
NUP4201DR2OSCT ND
NUP4201DR2OSCTND
NUP4201DR2OSCT
