NX4025DA-15.360000MHZ-B7

CRYSTAL 15.36MHZ 10PF SMD

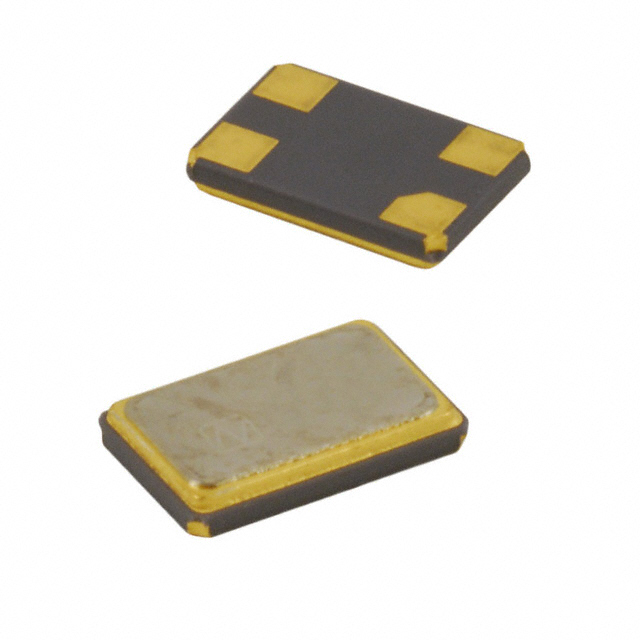

product image

NX4025DA-15.360000MHZ-B7 Picture
See larger image
SeekIC No. : 003410954 Detail

NX4025DA-15.360000MHZ-B7: CRYSTAL 15.36MHZ 10PF SMD

NX4025DA-15.360000MHZ-B7 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NX4025DA-15.360000MHZ-B7
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: NX4025DA Manufacturer: NDK
Type: MHz Crystal Emitter- Base Voltage VEBO : 2.3 V
Frequency: 15.36MHz Frequency Stability: ±10ppm
Frequency Tolerance: ±10ppm Load Capacitance: 10pF
ESR (Equivalent Series Resistance): - Operating Mode: Fundamental
Operating Temperature: -20°C ~ 75°C Ratings: -
Mounting Type: Surface Mount Package / Case: 4-SMD, No Lead (DFN, LCC)
Size / Dimension: 0.157" L x 0.098" W (4.00mm x 2.50mm) Height: 0.028" (0.70mm)

Description

Type: MHz Crystal
Operating Mode: Fundamental
Ratings: -
Mounting Type: Surface Mount
Frequency Tolerance: ±10ppm
Package / Case: 4-SMD, No Lead (DFN, LCC)
Frequency Stability: ±10ppm
Load Capacitance: 10pF
Packaging: Cut Tape (CT)
Size / Dimension: 0.157" L x 0.098" W (4.00mm x 2.50mm)
ESR (Equivalent Series Resistance): -
Height: 0.028" (0.70mm)
Frequency: 15.36MHz
Manufacturer: NDK
Operating Temperature: -20°C ~ 75°C
Series: NX4025DA


Parameters:

Technical/Catalog InformationNX4025DA-15.360000MHZ-B7
VendorNDK (VA)
CategoryCrystals and Oscillators
Frequency15.36MHz
Load Capacitance10pF
Package / Case4.0mm x 2.5mm
PackagingDigi-Reel?
Frequency Tolerance±10ppm
Mounting TypeSurface Mount
Operating ModeFundamental
Operating Temperature-20°C ~ 70°C
TypeQuartz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names NX4025DA 15 360000MHZ B7
NX4025DA15360000MHZB7
644 1106 6 ND
64411066ND
644-1106-6
