Part Number: OP-97

Category: Other

MFG: Other





Description: The OP-97 is a low -power alternative to the industry-standard OP-07 precision amplifier.The OP-97 maintains the standard...


Urgent Purchase

OP-97 General Description


The OP-97 is a low -power alternative to the industry-standard OP-07 precision amplifier.The OP-97 maintains the standards of performance set by the OP-07 while utilizing only 600A supply current.

Features of the OP-97 are:(1)low supply current is 600A Max;(2)very low bias current 25 is 100pA Max,-55 to +125 is 250pA Max;(3)high common-mode rejection is 114dB Min;(4)extended industrial temperature range is -40 to +85;(5)available in die from.

The absolute maximum ratings of the OP-97 can be summarized as:(1):the parameter is supply voltage,the rating is ±20,the unit is V;(2):the parameter is input voltage,the rating is ±20,the unit is V;(3):the parameter is differential input voltage,the rating is ±1,the unit is V;(4):the parameter is differential input current,the rating is ±10,the unit is mA;(5):the parameter is output short-circuit duration,the rating is indefinite;(6):the parameter is operating temperature range,the rating is -55 to +125,-40 to +85,the unit is ;(7):the parameter is storage temperature range,the rating is -65 to +150,the unit is ;(8):the parameter is junction temperature range,the rating is -65 to +150,the unit is ;(9):the parameter is lead temperature (soldering,60 sec),the rating is +300,the unit is .

OP-97 Connection Diagram

OP-97  Connection Diagram

OP-97 datasheet

OP-97
PDF/DataSheet Download

Find OP-97 Suppliers

  • ·OP-01
  • CALOGIC [Calogic, LLC]
  • Inverting High-Speed Operational Amplifier
  • 308161 KB
  • OP-01 Datasheet Download
  • ·OP-01C
  • CALOGIC [Calogic, LLC]
  • Inverting High-Speed Operational Amplifier
  • 308161 KB
  • OP-01C Datasheet Download
  • ·OP-01CJ
  • CALOGIC [Calogic, LLC]
  • Inverting High-Speed Operational Amplifier
  • 308161 KB
  • OP-01CJ Datasheet Download
  • ·OP-01CP
  • CALOGIC [Calogic, LLC]
  • Inverting High-Speed Operational Amplifier
  • 308161 KB
  • OP-01CP Datasheet Download
  • ·OP-01CS
  • CALOGIC [Calogic, LLC]
  • Inverting High-Speed Operational Amplifier
  • 308161 KB
  • OP-01CS Datasheet Download
  • ·OP-01CZ
  • CALOGIC [Calogic, LLC]
  • Inverting High-Speed Operational Amplifier
  • 308161 KB
  • OP-01CZ Datasheet Download
  • ·OP-01G
  • CALOGIC [Calogic, LLC]
  • Inverting High-Speed Operational Amplifier
  • 308161 KB
  • OP-01G Datasheet Download
  • ·OP-01GJ
  • CALOGIC [Calogic, LLC]
  • Inverting High-Speed Operational Amplifier
  • 308161 KB
  • OP-01GJ Datasheet Download

OP-97 Relative Products

  • OP97

    OP97

    The OP97 is a low power alternative to the industry-standard OP07 precision amplifier. The OP97 maintains the standards of performance set by the OP07 while utilizing only 600 A supply current, less than 1/6 that of an OP07. Offset voltage is an ultralow 25 ...

  • OP955

    OP955

    The OP955 devices consists of a PIN silicon photodiode molded in a clear epoxy package which allows spectral response from visible to infrared wavelengths. The wide receiving angle provides relatively even reception over a large area. The side-looking packag...

  • OP954

    OP954

    The OP954 device consists of a PIN silicon photodiode molded in a clear epoxy package which allows spectral response from visible to infrared light wavelengths. The very wide receiving angle provides relatively even reception over a large area. The side-look...

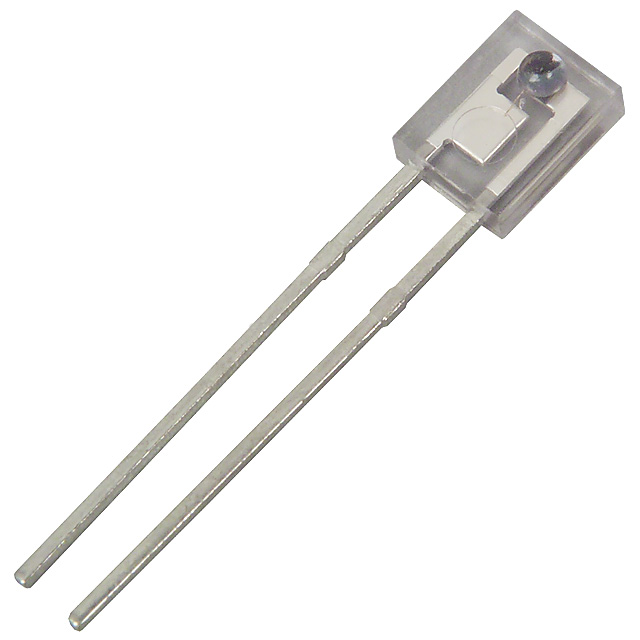

  • OP950
