Part Number: OP275

MFG: ADI

D/C: 09

Description: The OP275 is the first amplifier to feature the Butler Amplifier front-end. This new front-end design combines both bip...

OP275 General Description

The OP275 is the first amplifier to feature the Butler Amplifier front-end. This new front-end design combines both bipolar and JFET transistors to attain amplifiers with the accuracy and low noise performance of bipolar transistors, and the speed and sound quality of JFETs. Total Harmonic Distortion plus Noise equals that of previous audio ampli-fiers, but at much lower supply currents.

A very low l/f corner of below 6 Hz maintains a flat noise density response. Whether noise is measured at either 30 Hz or 1 kHz, it is only 6 nV/ÖHz. The JFET portion of the input stage gives the OP275 its high slew rates to keep distortion low, even when large output swings are required, and the 22 V/ms slew rate of the OP275 is the fastest of any standard audio amplifier. Best of all, this low noise and high speed are accomplished using less than 5 mA of supply current, lower than any standard audio amplifier.

Improved dc performance is also provided with bias and offset currents greatly reduced over purely bipolar designs. Input offset voltage is guaranteed at 1 mV and is typically less than 200 mV. This allows the OP275 to be used in many dc coupled or summing applications without the need for special selections or the added noise of additional offset adjustment circuitry.

The output is capable of driving 600 W loads to 10 V rms while maintaining low distortion. THD + Noise at 3 V rms is a low 0.0006%.

The OP275 is specified over the extended industrial (40°C to +85°C) temperature range. OP275s are available in both plastic DIP and SOIC-8 packages. SOIC-8 packages are available in 2500 piece reels. Many audio amplifiers are not offered in SOIC-8 surface mount packages for a variety of reasons; however, the OP275 was designed so that it would offer full performance in surface mount packaging.

OP275 Maximum Ratings

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±22 V
Input Voltage² . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±22 V
Differential Input Voltage². . . . . . . . . . . . . . . . . . . . .±7.5 V
Output Short-Circuit Duration to GND3 . . . . . . . . . Indefinite
Storage Temperature Range
P, S Package . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
OP275G . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +85°C
Junction Temperature Range
P, S Package . . . . . . . . . . . . . . . . . . . . . . .65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . +300°C

OP275 Features

Excellent Sonic Characteristics
Low Noise: 6 nV/Hz
Low Distortion: 0.0006%
High Slew Rate: 22 V/s
Wide Bandwidth: 9 MHz
Low Supply Current: 5 mA
Low Offset Voltage: 1 mV
Low Offset Current: 2 nA
Unity Gain Stable
SOIC-8 Package

OP275 Typical Application

High Performance Audio
Active Filters
Fast Amplifiers
Integrators

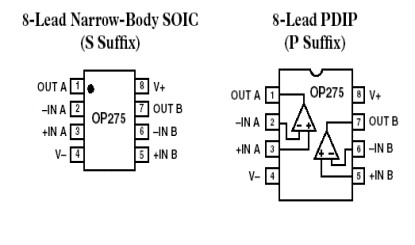

OP275 Connection Diagram

OP275 datasheet

OP275
PDF/DataSheet Download

Datasheet: OP275
File Size: 193701 KB
Manufacturer: AD [Analog Devices]
Click here to Download
