General Description
OP37 General Description
The OP37 provides the same high performance as the OP27,but the design is optimized for circuits with gains greater than five. This design change increases slew rate to 17 V/µs and gain-bandwidth product to 63 MHz.
The OP37 provides the low offset and drift of the OP07 plus higher speed and lower noise. Offsets down to 25 µV and drift of 0.6 µV/°C maximum make the OP37 ideal for precision instrumentation applications. Exceptionally low noise (en= 3.5 nV/ @ 10 Hz), a low 1/f noise corner frequency of 2.7 Hz, and the high gain of 1.8 million, allow acc-urate high-gain amplification of low-level signals.
The low input bias current of 10 nA and offset current of 7 nA are achieved by using a bias-current cancellation circuit. Over the military temperature range this typically holds IB and IOS to 20 nA and 15 nA respectively.
The output stage has good load driving capability. A guaranteed swing of 10 V into 600 Ω and low output distortion make the OP37 an excellent choice for professional audio applications.PSRR and CMRR exceed 120 dB. These charact-eristics, coupled with long-term drift of 0.2 µV/month, allow the circuit designer to achieve performance levels pre-viously attained only by discrete designs.
Low-cost, high-volume production of the OP37 is achieved by using on-chip zener-zap trimming. This reliable and st-able offset trimming scheme has proved its effectiveness over many years of production history.
The OP37 brings low-noise instrumentation-type performance to such diverse applications as microphone, tapehead, and RIAA phono preamplifiers, high-speed signal conditioning for data acquisition systems, and wide-bandwidth instrumentation.
OP37 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 V
Internal Voltage (Note 1 ) . . . . . . . . . . . . . . . . . . . . . . 22 V
Output Short-Circuit Duration . . . . . . . . . . . . . . . .Indefinite
Differential Input Voltage (Note2) . . . . . . . . . . . . . . . .0.7 V
Differential Input Current (Note 2) . . . . . . . . . . . . . . 25 mA
Storage Temperature Range . . . . . . . . . .65°C to +150°C
Operating Temperature Range
OP37A . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to +1 25°C
OP37E (Z) . . . . . . . . . . . . . . . . . . . . . . . . .25°C to +85°C
OP37E, OP-37F (P) . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
OP37G (P, S, Z) . . . . . . . . . . . . . . . . . . . . .40°C to +85°C
Lead Temperature Range (Soldering, 60 sec) . . . . . 300°C
Internal Voltage (Note 1 ) . . . . . . . . . . . . . . . . . . . . . . 22 V
Output Short-Circuit Duration . . . . . . . . . . . . . . . .Indefinite
Differential Input Voltage (Note2) . . . . . . . . . . . . . . . .0.7 V
Differential Input Current (Note 2) . . . . . . . . . . . . . . 25 mA
Storage Temperature Range . . . . . . . . . .65°C to +150°C
Operating Temperature Range
OP37A . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to +1 25°C
OP37E (Z) . . . . . . . . . . . . . . . . . . . . . . . . .25°C to +85°C
OP37E, OP-37F (P) . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
OP37G (P, S, Z) . . . . . . . . . . . . . . . . . . . . .40°C to +85°C
Lead Temperature Range (Soldering, 60 sec) . . . . . 300°C
OP37 Features
Low Noise, 80 nV p-p (0.1 Hz to 10 Hz)
3 nV/Hz @ 1 kHz
Low Drift, 0.2 V/
High Speed, 17 V/s Slew Rate
63 MHz Gain Bandwidth
Low Input Offset Voltage, 10V
Excellent CMRR, 126 dB (Common-Voltage @ 11 V)
High Open-Loop Gain, 1.8 Million
Replaces 725, OP-07, SE5534 In Gains > 5
Available in Die Form
3 nV/Hz @ 1 kHz
Low Drift, 0.2 V/
High Speed, 17 V/s Slew Rate
63 MHz Gain Bandwidth
Low Input Offset Voltage, 10V
Excellent CMRR, 126 dB (Common-Voltage @ 11 V)
High Open-Loop Gain, 1.8 Million
Replaces 725, OP-07, SE5534 In Gains > 5
Available in Die Form

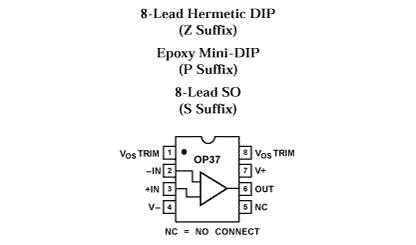

OP37 Connection Diagram
OP37
