OP400

The OP400 is the first monolithic quad operational amplifier that features OP77 type performance. Precision perfor-mance no longer has to be sacrificed to obtain the space and cost savings offered by quad amplifiers.

The OP400 features an extremely low input offset voltage of less than 150 mV with a drift of under 1.2 mV/, guar-anteed over the full military temperature range. Open-loop gain of the OP400 is over 5,000,000 into a 10 kW load, input bias current is under 3 nA, CMR is above 120 dB, and PSRR is below 1.8 mV/V. On-chip zener-zap trimming is used to achieve the low input offset voltage of the OP400 and eliminates the need for offset nulling.

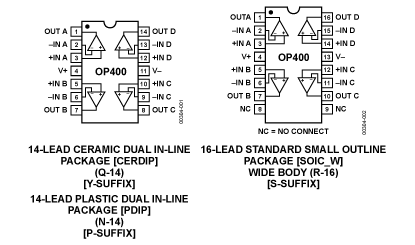

The OP400 conforms to the industry-standard quad pinout which does not have null terminals. The OP400 features low power consumption, drawing less than 25 mA per amplifier. The total current drawn by this quad amplifier is less than that of a single OP07, yet the OP400 offers significant improvements over this industry standard op amp. Volt-age noise density of the OP400 is a low 11 nV/˜Hz at 10 Hz,which is half that of most competitive devices.

The OP400 is pin-compatible with the LM148, HA4741,RM4156, and LT1014 operational amplifiers and can be used
to upgrade systems using these devices. The OP400 is an ideal choice for applications requiring multiple precision operational amplifiers and where low power consumption is critical.
