Part Number: OP496
MFG: ADI
D/C: 09
Description: The OP196 family of CBCMOS operational amplifiers features micropower operation and rail-to-rail input and output range...
- Table of contents:
OP496
-
Suppliers
DataSheet
General Description
OP496 General Description
The OP196 family of CBCMOS operational amplifiers features micropower operation and rail-to-rail input and output ranges.
The extremely low power requirements and guaranteed operation from +3 V to +12 V make these amplifiers perfectly suited to monitor battery usage and to control battery charging. Their dynamic performance, including 26 nV/ÖHz voltage noise density, recommends them for battery-powered audio applications. Capacitive loads to 200 pF are handled without oscillation.
The OP196/OP296/OP496 are specified over the HOT extended industrial (40°C to +125°C) temperature range. +3 V operation is specified over the 0°C to +125°C temperature range.
The single OP196 and the dual OP296 are available in 8-lead plastic DIP and SO-8 surface mount packages. The quad
OP496 is available in 14-lead plastic DIP and narrow SO-14 surface mount packages.
OP496 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +15 V
Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +15 V
Differential Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . +15 V
Output Short Circuit Duration . . . . . . . . . . . . . . . . . Indefinite
Storage Temperature Range
P, S, RU Package . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
OP196G, OP296G, OP496G, H . . . . . . . . . . 40°C to +125°C
Junction Temperature Range
P, S, RU Package . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . .+300°C
Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +15 V
Differential Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . +15 V
Output Short Circuit Duration . . . . . . . . . . . . . . . . . Indefinite
Storage Temperature Range
P, S, RU Package . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
OP196G, OP296G, OP496G, H . . . . . . . . . . 40°C to +125°C
Junction Temperature Range
P, S, RU Package . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . .+300°C
OP496 Features
Rail-to-Rail Input and Output Swing
Low Power: 60 mA/Amplifier
Gain Bandwidth Product: 450 kHz
Single-Supply Operation: +3 V to +12 V
Low Offset Voltage: 300 mV max
High Open-Loop Gain: 500 V/mV
Unity-Gain Stable
No Phase Reversal
Low Power: 60 mA/Amplifier
Gain Bandwidth Product: 450 kHz
Single-Supply Operation: +3 V to +12 V
Low Offset Voltage: 300 mV max
High Open-Loop Gain: 500 V/mV
Unity-Gain Stable
No Phase Reversal
OP496 Typical Application
Battery Monitoring
Sensor Conditioners
Portable Power Supply Control
Portable Instrumentation
Sensor Conditioners
Portable Power Supply Control
Portable Instrumentation

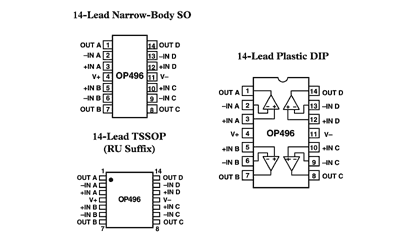

OP496 Connection Diagram
OP496
PDF/DataSheet Download
