Part Number: OPA604



MFG: BB

Package Cooled: SOP/DIP

D/C: 06+

Description: The OPA604 is a FET-input operational amplifier designed for enhanced AC performance. Very low distort...


Urgent Purchase

OPA604 General Description


The OPA604 is a FET-input operational amplifier designed for enhanced AC performance. Very low distortion, low noise and wide bandwidth provide superior performance in high quality audio and other applications requiring excellent dynamic performance.

New circuit techniques and special laser trimming of dynamic circuit performance yield very low harmonic distortion. The result is an op amp with exceptional sound quality. The low-noise FET input of the OPA604 provides wide dynamic range, even with high source impedance. Offset voltage is laser-trimmed to minimize the need for interstage coupling capacitors.

The OPA604 is available in 8-pin plastic mini-DIP and SO-8 surface-mount packages, specified for the 25 to +85 temperature range.

OPA604 Maximum Ratings

Power Supply Voltage ...................................................................... ±25V
Input Voltage ........................................................... (V)1V to (V+)+1V
Output Short Circuit to Ground ................................................ Continuous
Operating Temperature ...................................................40 to +100
Storage Temperature ......................................................40 to +125
Junction Temperature .................................................................... +150
Lead Temperature (soldering, 10s) AP .......................................... +300
Lead Temperature (soldering, 3s) AU ............................................ +260

OPA604 Features

` LOW DISTORTION: 0.0003% at 1kHz
` LOW NOISE: 10nV/ÖHz
` HIGH SLEW RATE: 25V/s
` WIDE GAIN-BANDWIDTH: 20MHz
` UNITY-GAIN STABLE
`WIDE SUPPLY RANGE: VS = ±4.5 to ±24V
`DRIVES 600W LOAD
` DUAL VERSION AVAILABLE (OPA2604)

OPA604 Typical Application

· PROFESSIONAL AUDIO EQUIPMENT
· PCM DAC I/V CONVERTER
· SPECTRAL ANALYSIS EQUIPMENT
· ACTIVE FILTERS
· TRANSDUCER AMPLIFIER
· DATA ACQUISITION

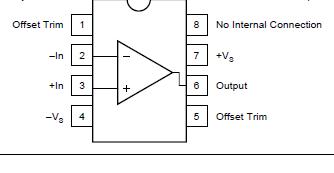

OPA604 Connection Diagram

OPA604 Connection Diagram

OPA604 datasheet

OPA604
PDF/DataSheet Download

Find OPA604 Suppliers
