OPA633
-
Suppliers
DataSheet
General Description
OPA633 General Description
The OPA633 is a monolithic unity-gain buffer amplifier featuring very wide bandwidth and high slew rate. A dielectric isolation process incorporating both NPN and PNP high frequency transistors achieves performance unattainable with conventional integrated circuit technology. Laser trimming provides low input offset voltage.
High output current capability allows the OPA633 to drive 50W and 75W lines, making it ideal for RF, IF and video applications. Low phase shift allows the OPA633 to be used inside amplifier feedback loops. OPA633 is available in a low cost plastic DIP package specified for 0°C to +75°C operation.
OPA633 Maximum Ratings
Power Supply, ±VS .............................................................. ±20V
Input Voltage VIN ...................................... +VS + 2V to VS 2V
Output Current (peak) .....................................................±200mA
Internal Power Dissipation (25°C) .................................... 1.95W
Junction Temperature ....................................................... 200°C
Storage Temperature Range ...........................40°C to +85°C
Lead Temperature (soldering, 10s) ................................. 300°C
Input Voltage VIN ...................................... +VS + 2V to VS 2V
Output Current (peak) .....................................................±200mA
Internal Power Dissipation (25°C) .................................... 1.95W
Junction Temperature ....................................................... 200°C
Storage Temperature Range ...........................40°C to +85°C
Lead Temperature (soldering, 10s) ................................. 300°C
OPA633 Features
·WIDE BANDWIDTH: 260MHz
·HIGH SLEW RATE: 2500V/ms
·HIGH OUTPUT CURRENT: 100mA
·LOW OFFSET VOLTAGE: 1.5mV
·REPLACES HA-5033
·IMPROVED PERFORMANCE/PRICE: LH0033, LTC1010, H0S200
·HIGH SLEW RATE: 2500V/ms
·HIGH OUTPUT CURRENT: 100mA
·LOW OFFSET VOLTAGE: 1.5mV
·REPLACES HA-5033
·IMPROVED PERFORMANCE/PRICE: LH0033, LTC1010, H0S200
OPA633 Typical Application
·OP AMP CURRENT BOOSTER
·VIDEO BUFFER
·LINE DRIVER
·A/D CONVERTER INPUT BUFFER
·VIDEO BUFFER
·LINE DRIVER
·A/D CONVERTER INPUT BUFFER

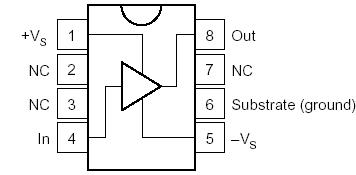

OPA633 Connection Diagram
OPA633
