Part Number: OV5116N
Description: The OV5116N is a complete black and white CMOS Video Camera chip. It conforms to EIA/NTSC (60 Hz) standards and outputs...
- Table of contents:
OV5116N
-
Suppliers
DataSheet
General Description
OV5116N General Description
The OV5116N is a complete black and white CMOS Video Camera chip. It conforms to EIA/NTSC (60 Hz) standards and outputs composite video capable of directly driving a 75 display device.
The on-chip auto exposure allows for a wide range of lighting conditions, eliminating the need for external mechanical shutter components. This, along with its single supply, low power consumption makes the OV5116N an incredibly versatile and cost-effective video camera perfect for the following types of applications:
OV5116N Features
·Single chip 1/4 inch format video image sensor
·EIA/NTSC output
·Selectable mirror image
·Auto gain control (maximum + 18 dB)
·High I.R. sensitivity for nighttime applications
·Auto and manual backlight compensation mode
·Gamma correction -On/Off
·External frame sync capability
·40mw on-chip power consumption
·External data acquisition support
·Smear free
·Auto level expanding
·Optional edge enhancement
·EIA/NTSC output
·Selectable mirror image
·Auto gain control (maximum + 18 dB)
·High I.R. sensitivity for nighttime applications
·Auto and manual backlight compensation mode
·Gamma correction -On/Off
·External frame sync capability
·40mw on-chip power consumption
·External data acquisition support
·Smear free
·Auto level expanding
·Optional edge enhancement
OV5116N Typical Application
·Security
·Surveillance
·Machine Vision
·Process Control
·CCTV
·Infant Monitoring
·Toys
·Surveillance
·Machine Vision
·Process Control
·CCTV
·Infant Monitoring
·Toys

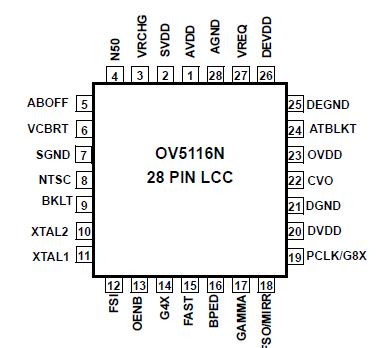

OV5116N Connection Diagram
OV5116N
