Product Details

Description



Features:

·FCC approved method of EMI attenuation.
·Provides up to 15dB of EMI suppression.
·Generates a 1X or ½ X low EMI spread spectrum clock of the input frequency.
·Input frequency range: 4MHz to 32MHz.
·Internal loop filter minimizes external components and board space.
·Spreading ranges from ±0.8% to ±3.2%.
·SSON# control pin for spread spectrum enable and disable options.
·Low Cycle-to-Cycle jitter.
·3.3V Operating Voltage.
·Ultra-low power CMOS design.
·Available in 8-pin SOIC and TSSOP Packages.


Application

The P2008A is targeted towards cable, xDSL, fax modem, set-top box, USB controller, DSC, and other embedded systems.


Pinout

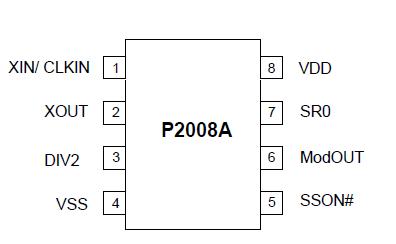

Connection Diagram


Specifications

Symbol
 Parameter
Rating
Unit
VDD, VIN
 Voltage on any pin with respect to Ground
-0.5 to +7.0
V
TSTG
 Storage temperature
-65 to +125
°C
TA
 Operating temperature
-40 to +85
°C
Ts
 Max. Soldering Temperature (10 sec)
260
°C
TJ
 Junction Temperature
150
°C
TDV
 Static Discharge Voltage
(As per JEDEC STD22- A114-B)
2
KV
Note: These are stress ratings only and are not implied for functional use. Exposure to absolute maximum ratings for prolonged periods of time may affect device reliability.



Description

The number of P2008A circuit board layers ferrite beads, shielding and other passive components that are traditionally required to pass EMI regulations.

The P2008A uses the most efficient and optimized modulation profile approved by the FCC and is implemented in a proprietary all digital method.

The P2008A modulates the output of a single PLL in order to "spread" the bandwidth of a synthesized clock, and more importantly, decreases the peak amplitudes of its harmonics. This results in significantly lower system EMI compared to the typical narrow band signal produced by oscillators and most frequency generators. Lowering EMI by increasing a signal's bandwidth is called 'spread spectrum clock generation'.
