Part Number: P80CL51
Description: The P80CL31; P80CL51 (hereafter generally referred to as the P80CLx1) is manufactured in an advanced CMOS technology. T...
- Table of contents:
P80CL51
-
Suppliers
DataSheet
General Description
P80CL51 General Description
The P80CL31; P80CL51 (hereafter generally referred to as the P80CLx1) is manufactured in an advanced CMOS technology. The P80CLx1 has the same instruction set as the 80C51, consisting of over 100 instructions: 49 one-byte, 46 two-byte, and 16 three-byte. The device operates over a wide range of supply voltages and has low power consumption; there are two software selectable modes for power reduction: Idle and Power-down. For emulation purposes, the P85CL000 (piggy-back version) with 256 bytes of RAM is recommended.
This data sheet details the specific properties of the P80CL31; P80CL51. For details of the 80C51 core see "Data Handbook IC20".
P80CL51 Maximum Ratings
| SYMBOL | PARAMETER | MIN. | MAX. | UNIT |
| VDD | supply voltage | -0.5 | +6.5 | V |
| VI | input voltage on any pin with respect to ground (VSS) | -0.5 | VDD + 0.5 | V |
| II | DC current on any input | -5.0 | +5.0 | mA |
| IO | DC current on any output | -5.0 | +5.0 | mA |
| Ptot | total power dissipation | - | 300 | mW |
| Tstg | storage temperature | -65 | +150 | °C |
| Tamb | operating ambient temperature | -40 | +85 | °C |
| Tj | operating junction temperature | - | +125 | °C |
P80CL51 Features
` Full static 80C51 Central Processing Unit
` 8-bit CPU, ROM, RAM, I/O in a 40-lead DIP, 40-lead VSO or 44-lead QFP package
` 128 bytes on-chip RAM Data Memory
` 4 kbytes on-chip ROM Program Memory for P80CL51
` External memory expandable up to 128 kbytes: RAM up to 64 kbytes and ROM up to 64 kbytes
` Four 8-bit ports; 32 I/O lines
` Two 16-bit Timer/Event counters
` On-chip oscillator suitable for RC, LC, quartz crystal or ceramic resonator
` Thirteen source, thirteen vector, nested interrupt structure with two priority levels
` Full duplex serial port (UART)
` Enhanced architecture with:
non-page oriented instructions
direct addressing
four 8-byte RAM register banks
stack depth limited only by available internal RAM (maximum 128 bytes)
multiply, divide, subtract and compare instructions
` Reduced power consumption through Power-down and Idle modes
` Wake-up via external interrupts at Port 1
` Frequency range: 0 to 16 MHz (P80C51: 3.5 MHz min.)
` Supply voltage: 1.8 to 6.0 V (P80C51: 5.0 V ±10%)
` Very low current consumption
` Operating ambient temperature range: -40 to +85 °C.
` 8-bit CPU, ROM, RAM, I/O in a 40-lead DIP, 40-lead VSO or 44-lead QFP package
` 128 bytes on-chip RAM Data Memory
` 4 kbytes on-chip ROM Program Memory for P80CL51
` External memory expandable up to 128 kbytes: RAM up to 64 kbytes and ROM up to 64 kbytes
` Four 8-bit ports; 32 I/O lines
` Two 16-bit Timer/Event counters
` On-chip oscillator suitable for RC, LC, quartz crystal or ceramic resonator
` Thirteen source, thirteen vector, nested interrupt structure with two priority levels
` Full duplex serial port (UART)
` Enhanced architecture with:
non-page oriented instructions
direct addressing
four 8-byte RAM register banks
stack depth limited only by available internal RAM (maximum 128 bytes)
multiply, divide, subtract and compare instructions
` Reduced power consumption through Power-down and Idle modes
` Wake-up via external interrupts at Port 1
` Frequency range: 0 to 16 MHz (P80C51: 3.5 MHz min.)
` Supply voltage: 1.8 to 6.0 V (P80C51: 5.0 V ±10%)
` Very low current consumption
` Operating ambient temperature range: -40 to +85 °C.
P80CL51 Typical Application
The P80CLx1 is especially suited for real-time applications such as instrumentation, industrial control, intelligent computer peripherals and consumer products.
The P80CLx1 also functions as an arithmetic processor having facilities for both binary and BCD arithmetic plus bit-handling capabilities.
The P80CLx1 also functions as an arithmetic processor having facilities for both binary and BCD arithmetic plus bit-handling capabilities.

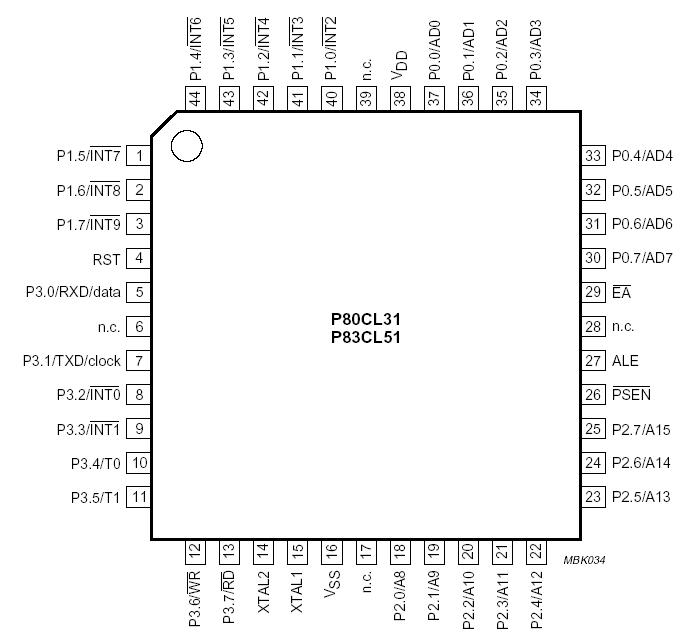

P80CL51 Connection Diagram
P80CL51
