P87C51RD2 General Description
The devices are Single-Chip 8-Bit Microcontrollers manufactured in an advanced CMOS process and are derivatives of the 80C51 microcontroller family. The instruction set is 100% compatible with the 80C51 instruction set.
The devices support 6-clock/12-clock mode selection by programming an OTP bit (OX2) using parallel programming. In addition, an SFR bit (X2) in the clock control register (CKCON) also selects between 6-clock/12-clock mode.
The devices also have four 8-bit I/O ports, three 16-bit timer/event counters, a multi-source, four-priority-level, nested interrupt structure, an enhanced UART and on-chip oscillator and timing circuits.
The added features of the P87C51RA2/RB2/RC2/RD2 make it a powerful microcontroller for applications that require pulse width modulation, high-speed I/O and up/down counting capabilities such as motor control.
P87C51RD2 Maximum Ratings
P87C51RD2 Features
• 80C51 Central Processing Unit
8 kbytes OTP (87C51RA2)
16 kbytes OTP (87C51RB2)
32 kbytes OTP (87C51RC2)
64 kbytes OTP (87C51RD2)
512 byte RAM (87C51RA2/RB2/RC2)
1 kbyte RAM (87C51RD2)
Boolean processor
Fully static operation
Low voltage (2.7 V to 5.5 V at 16 MHz) operation
• 12-clock operation with selectable 6-clock operation (via software or via parallel programmer)
• Memory addressing capability
Up to 64 kbytes ROM and 64 kbytes RAM
• Power control modes:
Clock can be stopped and resumed
Idle mode
Power-down mode
• CMOS and TTL compatible
• Two speed ranges at VCC = 5 V
0 to 30 MHz with 6-clock operation
0 to 33 MHz with 12-clock operation
• Parallel programming with 87C51 compatible hardware interface to programmer
• RAM expandable externally to 64 kbytes
• Programmable Counter Array (PCA)
PWM
Capture/compare
• PLCC, LQFP, or DIP package
• Extended temperature ranges
• Dual Data Pointers
• Security bits (3 bits)
• Encryption array - 64 bytes
• Seven interrupt sources
• 4 interrupt priority levels
• Four 8-bit I/O ports
• Full-duplex enhanced UART
Framing error detection
Automatic address recognition
• Three 16-bit timers/counters T0, T1 (standard 80C51) and additional T2 (capture and compare)
• Programmable clock-out pin
• Asynchronous port reset
• Low EMI (inhibit ALE, slew rate controlled outputs, and 6-clock mode)
• Wake-up from Power Down by an external interrupt

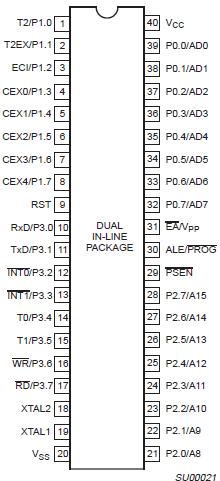

P87C51RD2 Connection Diagram
