P89LPC915

Features: · 2 kB byte-erasable Flash code memory organized into 256-byte sectors and 16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage.· 256-byte RAM data memory.· Two 16-bit counter/timers. Timer 0 (and Timer 1 - P89LPC917) may be configured to toggle a...

product image

P89LPC915 Picture
See larger image
SeekIC No. : 004453758 Detail

P89LPC915: Features: · 2 kB byte-erasable Flash code memory organized into 256-byte sectors and 16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage.· 256-byte RAM data...

P89LPC915 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
P89LPC915
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 2 kB byte-erasable Flash code memory organized into 256-byte sectors and
  16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage.
· 256-byte RAM data memory.
· Two 16-bit counter/timers. Timer 0 (and Timer 1 - P89LPC917) may be configured
  to toggle a port output upon timer overflow or to become a PWM output.
· 23-bit system timer that can also be used as a Real-Time clock.
· 4-input multiplexed 8-bit A/D converter/single DAC output. Two analog
  comparators with selectable reference.
· Enhanced UART with fractional baud rate generator, break detect, framing error
  detection, automatic address detection and versatile interrupt capabilities.
· SPI communication port (P89LPC916).
· Internal RC oscillator option allows operation without external oscillator
  components. The RC oscillator (factory calibrated to ±1 %) option is selectable and fine tunable.
· 2.4 V to 3.6 V VDD operating range. I/O pins are 5 V tolerant (may be pulled up or driven to 5.5 V).
· Up to 14 I/O pins when using internal oscillator and reset options (P89LPC916, P89LPC917).


Pinout

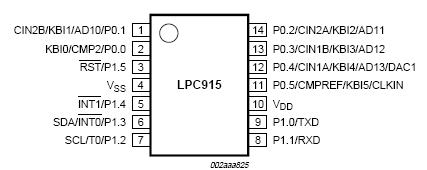

Connection Diagram


Specifications



Symbol Parameter Conditions Min Max Unit
Tamb(bias) operating bias ambient temperature   -55 +125 °C
Tstg storage temperature range   -65 +150 °C
Vxtal voltage on XTAL1, XTAL2 pin to VSS     VDD + 0.5 v
Vn voltage on any other pin to VSS   -0.5 5.5 v
IOH(I/O) HIGH-level output current per I/O pin     8 mA
IOL(I/O) LOW-level output current per I/O pin     20 mA
II/O(tot)(max) maximum total I/O current     120 mA
Ptot(pack) total power dissipation per package based on package heat
transfer, not device power
consumption		   1.5 w



Description

The P89LPC915/916/917 are single-chip microcontrollers in low-cost 14-pin and16-pin packages, based on a high performance processor architecture that executes instructions in two to four clocks, six times the rate of standard 80C51 devices. Many= system level functions have been incorporated into the P89LPC915/916/917 in order to reduce component count, board space, and system cost.
