PAA110L

Solid State Relays Dual 1-Form-A relay

product image

PAA110L Picture
See larger image
SeekIC No. : 0096130 Detail

PAA110L: Solid State Relays Dual 1-Form-A relay

PAA110L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PAA110L
Mfg:
Clare
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product Type : PCB Mount Load Voltage Rating : 400 V
Load Current Rating : 150 mA Package / Case : SIP-8

Description

Mounting Style :
Control Voltage Range :
Contact Form :
Output Device :
Product Type : PCB Mount
Load Voltage Rating : 400 V
Load Current Rating : 150 mA
Package / Case : SIP-8


Features:

• Small 8 Pin DIP Package
• Low Drive Power Requirements (TTL/CMOS Compatible)
• No Moving Parts
• High Reliability
• Arc-Free With No Snubbing Circuits
• 3750VRMS Input/Output Isolation
• VDE Compatible
• FCC Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
• Current Limiting, Surface Mount and Tape & Reel Versions Available


Application

• Telecommunications
  • Telecom Switching
  • Tip/Ring Circuits
  • Modem Switching (Laptop, Notebook, Pocket Size)
  • Hookswitch
  • Dial Pulsing
  • Ground Start
  • Ringer Injection
• Instrumentation
  • Multiplexers
  • Data Acquisition
  • Electronic Switching
  • I/O Subsystems
  • Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls


Pinout

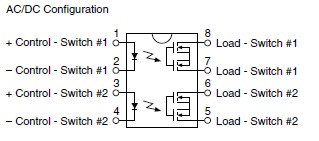

Connection Diagram


Specifications

Parameter
Min
Typ
Max
Units
Input Power Dissipation
-
-
1501
mW
Input Control Current
Peak (10ms)
-
-
-
-
50
1
mA
A
Reverse Input Voltage
-
-
5
V
Total Power Dissipation
-
-
8002
mW
Isolation VoltageInput to Output
3750
-
-
VRMS
Operational Temperature
-40
-
+85
Storage Temperature
-40
-
+125
Soldering Temperature DIP Package
Flatpack/Surface Mount Package (10 Seconds Max.)
-
-
-
-
+260
+220


1 Derate Linearly 1.33 mw/
2 Derate Linearly 6.67 mw/


Description

PAA110 is a 400V, 150mA, 22 2-Form-A relay. This performance leader provides high peak load voltage handling capability and improved peak load current handling. Current limiting version is available ("L" suffix, see specification  for variations in performance).




Parameters:

Technical/Catalog InformationPAA110L
VendorClare
CategoryRelays
Mounting TypeThrough Hole
Termination StylePC Pin
Package / Case8-DIP
CircuitDPST (2 Form A)
Load Current150mA
Voltage - Input1.2VDC
Voltage - Load0 ~ 400V
Output TypeAC, DC
On-State Resistance25 Ohm
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PAA110L
