PBD3545/1

Features: • 2 A continuous-output current• Short circuit to VCC protection• Error signal to host system• Open circuit detection• Short circuit to ground detection• Thermal protection• Built-in protection diodes• LS-TTL, CMOS, and supply voltage compa...

product image

PBD3545/1 Picture
See larger image
SeekIC No. : 004455514 Detail

PBD3545/1: Features: • 2 A continuous-output current• Short circuit to VCC protection• Error signal to host system• Open circuit detection• Short circuit to ground detection•...

PBD3545/1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PBD3545/1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2 A continuous-output current
• Short circuit to VCC protection
• Error signal to host system
• Open circuit detection
• Short circuit to ground detection
• Thermal protection
• Built-in protection diodes
• LS-TTL, CMOS, and supply voltage compatible input
• ESD protected
• 5-pin TO-220 package, or 28-lead power PLCC with lead-frame for heatsinking through PC board copper.


Pinout

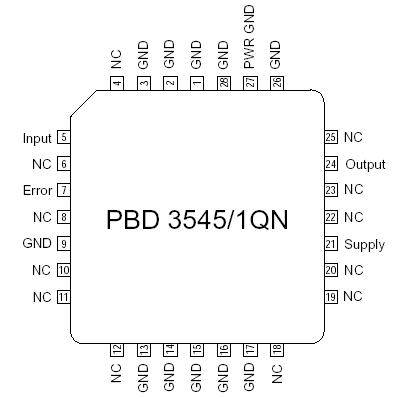

Connection Diagram


Specifications

Parameter Pin no. Symbol Min Max Unit
Voltage
Supply voltage 1 [21] VCC 0 45 V
Logic input voltage 5 [5] VIN -0.3 VCC V
Current
Logic input current 5 [5] IIN -10   mA
Continuous DC Operation output current 2 [24] IOUT   2.0 A
Error output current 4 [7] IERR   10 mA
Temperature
Operating junction temperature (internally limited)   TJ   +140 °C
Storage temperature   TS -55 +150 °C
Power Dissipation (Package Data)
Power dissipation at TCase = 85°C, TO-220 package   PD   11 W
Power dissipation at TCase = 85°C, PLCC package   PD   5 W
ESD
ESD tolerance (Note 2)     2000   V



Description

PBD 3545/1 is a bipolar universal high-current highly-protected low side driver with transparent input and 2 A continuous-current sink capability. A high-level input activates the output.

PBD3545/1 is equipped with extensive electrical protection, such as overcurrent protection and thermal protection, which makes the device viritually indestructible. Furthermore it can detect open circuit and short circuit to ground.

A special feature ofPBD3545/1 is the Error indicating output function pin which signals to the host system if the protection or the load check functions is activated.

Typical loads ofPBD3545/1 are solenoids, relays or resistive loads.

The PBD 3545/1 and PBD 3548/1 are complementary drivers and have similar data.
