General Description
PBL3717A General Description
ThePBL3717Ais amonolithic ICwhich controlsand drives one phase of a bipolar stepper motor with chopercontrolof the phase current. Current levels maybeselected in threestepsbymeans of two logic inputs which select one of three current comparators. When both of these inputs are high the device is disabled.A separatelogic input controls the direction of current flow.
A monostable,programmed by an externalRC network, sets the current decay time.
The power section is a full H-bridge driver with four internal clamp diodes for current recirculation. An externalconnectionto theloweremitters isavailable for the insertion of a sensing resistor. Two PBL3717As and few external components form a complete stepper motor drive subsystem.
The raccomended operating ambient temperature ranges is from 0 to 70 .
The PBL3717Ais supplied in a 12 + 2 + 2 lead Powerdip package.
PBL3717A Maximum Ratings
| Symbol | Parameter | Value | Unit |
| Vs | Power Supply Voltage | 50 | V |
| Vss | Logic Supply Voltage | 7 | V |
| Vi | Logic Input Voltage | 6 | V |
| Vc | Comparator Input | Vss | |
| Vr | Reference Input Voltage | 15 | V |
| Io | Output Current (DC operation) | 1.2 | A |
| Tstg | Storage Temperature | 55 to + 150 | |
| Tj | Operating Junction Temperature | 150 |
PBL3717A Features
·FULL STEP - HALF STEP - QUARTER STEP OPERATINGMODE
·BIPOLAROUTPUT CURRENT UP TO 1 A
·FROM 10 V UP TO 46 V MOTOR SUPPLY VOLTAGE
·LOW SATURATION VOLTAGE WITH INTE GRATED BOOTSTRAP
·BUILT IN FAST PROTECTION DIODES
·EXTERNALLY SELECTABLE CURRENT LEVEL
·OUTPUT CURRENT LEVEL DIGITALLY OR ANALOGUE CONTROLLED
·THERMAL PROTECTION WITH SOFT INTERVENTION
·BIPOLAROUTPUT CURRENT UP TO 1 A
·FROM 10 V UP TO 46 V MOTOR SUPPLY VOLTAGE
·LOW SATURATION VOLTAGE WITH INTE GRATED BOOTSTRAP
·BUILT IN FAST PROTECTION DIODES
·EXTERNALLY SELECTABLE CURRENT LEVEL
·OUTPUT CURRENT LEVEL DIGITALLY OR ANALOGUE CONTROLLED
·THERMAL PROTECTION WITH SOFT INTERVENTION

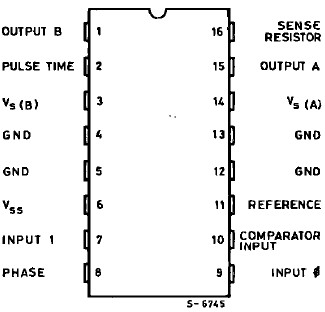

PBL3717A Connection Diagram
PBL3717A
