PC357D

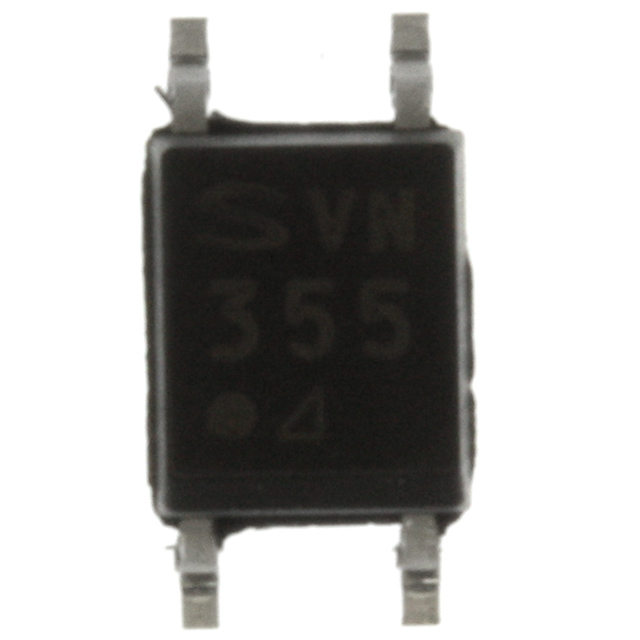

The PC357D is designed as one kind of mini-flat package general purpose photo coupler that can be used in (1)hybrid substrates that reguire high density mounting; (2)programmable controllers applications.

Features of the PC357D are:(1)Opaque type, mini-flat package.; (2)Subminiature type (The volume is smaller than that of our conventional DIP type by as far as 30%).; (3)Current transfer ratio (CTR:MIN.50% at IF=5mA, Vce=5V); (4)Isolation voltage between input and output (Viso:3750Vrms).

The absolute maximum ratings of the PC357D can be summarized as:(1)Forward current: 50 mA;(2)Peak forward current: 1 A;(3)Reverse voltage: 6 V;(4)Power dissipation: 70 mW;(5)Collector-emitter voltage: 60 V;(6)Emitter-collector voltage: 5 V;(7)Collector current: 50 mA;(8)Collector power dissipation: 150 mW;(9)Total power dissipation: 170 mW;(10)Isolation voltage 1 minute: 3750 Vrms;(11)Operating temperature: -30 to +100 °C;(12)Storage temperature: -40 to +125 °C;(13)Soldering temperature 10 seconds: 260 °C. If you want to know more information about it, please download the datasheet in www.seekic.com or www.chinaicmart.com .
