PC725V
-
Suppliers
DataSheet
General Description
PC725V Maximum Ratings
| Parameter | Symbol | Rating | Unit | |
| Input | *1Forward current | IF | 50 | mA |
| *2Peak forward current | IFM | 1 | A | |
| Reverse voltage | VR | 6 | V | |
| *1Power dissipation | P | 70 | mW | |
| Output | Collector-emitter voltage | VCEO | 300 | V |
| Emitter-collector voltage | VECO | 300 | V | |
| Emitter-base voltage | VEBO | 6 | V | |
| Collector current | IC | 150 | mA | |
| Collector current (reverse ) | - IC | 10 | mA | |
| Collector power dissipation | PC | 300 | mW | |
| Total power dissipation | Ptot | 350 | mW | |
| *2Isolation voltage | Viso | 5000 | V rms | |
| Total power dissipation | Ptot | - 25 to + 100 | °C | |
| Storage temperature | Tstg | - 40 to + 125 | °C | |
| *3Soldering temperature | Tsol | 260 | °C | |
*3 For 10 seconds
*2 40 to 60% RH, AC for 1 minute
PC725V Features
·High collector-emitter voltage ( VCEO : 300V)
·High current transfer ratio( CTR : MIN. 1 000% at IF = 1mA, V CE= 2V)
·High isolation voltage between input and output (VISO: 5 000V rms )
·Low collector dark current ( ICEO : MAX. 10 - 6A at VCE = 200V)
·Recognized by UL, file No. E64380
·High current transfer ratio( CTR : MIN. 1 000% at IF = 1mA, V CE= 2V)
·High isolation voltage between input and output (VISO: 5 000V rms )
·Low collector dark current ( ICEO : MAX. 10 - 6A at VCE = 200V)
·Recognized by UL, file No. E64380
PC725V Typical Application
·Telephone sets, telephone exchangers
·Power apparatus switchboards
·Numerical control machines
·DC-DC SSRs, DC motor controllers
·Power apparatus switchboards
·Numerical control machines
·DC-DC SSRs, DC motor controllers
PC725V
PDF/DataSheet Download
- Datasheet: PC725V
- File Size: 69690 KB
- Manufacturer: SHARP [Sharp Electrionic Components]
- Click here to Download
- ·PC700
- KARTENLESER PCMCIA FUER PC MIT TREIBER
- 530369 KB
- ·PC702V
- SHARP [Sharp Electrionic Components]
- High Collector-emitter Voltage Type Photocoupler
- 68879 KB
- ·PC702V0NSZX
- PHOTOCOUPLER
- 65659 KB
- ·PC702VI
- 137160 KB
- ·PC702VI1
- 137160 KB
- ·PC702VI2
- 137160 KB
- ·PC702VI3
- 137160 KB
- ·PC702VI4
- 137160 KB
PC725V Relative Products
PC724V0NSZXF

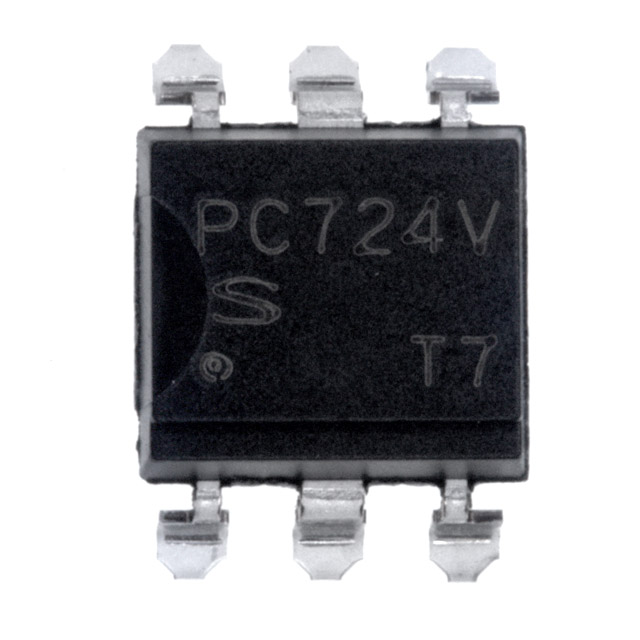

PHOTOCOUPLER HI IF 6-DIP
