Part Number: PC74HC594P
Description: The 74HC/HCT594 are high-speed, Si-gate CMOS devices, and are pin compatible with low power Schottky T...
- Table of contents:
PC74HC594P
-
Suppliers
DataSheet
General Description
PC74HC594P General Description
The 74HC/HCT594 are high-speed, Si-gate CMOS devices, and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard No. 7A.
The 74HC/HCT594 contain an 8-bit, non-inverting, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Separate clocks and direct overriding clears are provided on both the shift and storage registers. A serial output (Q7') is provided for cascading purposes.
Both the shift and storage register clocks are positive-edge triggered. If the user wishes to connect both clocks together, the shift register will always be one count pulse ahead of the storage register.
PC74HC594P Features
` Synchronous serial input and output
` 8-bit parallel output
` Shift and storage register have independent direct clear and clocks
` 100 MHz (typ.)
` Output capability:
parallel outputs: bus driver
serial outputs: standard
` ICC category: MSI
` 8-bit parallel output
` Shift and storage register have independent direct clear and clocks
` 100 MHz (typ.)
` Output capability:
parallel outputs: bus driver
serial outputs: standard
` ICC category: MSI
PC74HC594P Typical Application
· Serial-to parallel data conversion
· Remote control holding register
· Remote control holding register

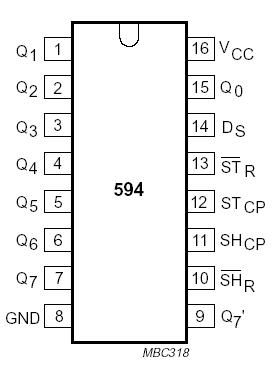

PC74HC594P Connection Diagram
PC74HC594P
PDF/DataSheet Download
- Datasheet: PC74HC594P
- File Size: 72934 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
