General Description
PCD3332-S General Description
The PCD3332-2, PCD3332-3 and PCD3332-S are mixed-mode multistandard repertory dialler/ringer ICs, fabricated in a low threshold voltage CMOS technology. Dial parameters of these ICs can be set by diode options to meet the specific requirements for various countries.
The on-chip tone generators are used for DTMF dialling and ringer melody generation. A discriminator input enables the tone output only if a correct ringer frequency is applied. Repertory numbers of up to 32 digits can be stored, with maximum storage of 250 digits.
PCD3332-S Features
` Pulse, DTMF and VT 'mixed mode' dialling
` 13 number repertory dial, up to 32 digits per number
10 one-touch redial or 3 one-touch plus 10 two-touch
250 digits maximum storage
` Last number redial up to 32 digits
` Repertory and redial memory integrity check (memory contents check)
` Notepad memory function
` Flash and Earth register recall
` Access pause generation and termination
` On-chip power-on reset
` Supports function keys as follows:
STORE: Program/Store
MRC: Memory Recall
FLASH: calibrated line-break pulse
LNR: Last Number Redial
PAUSE: insert access pause between stored digits
TONE: change from pulse to DTMF dialling (mixed mode)
VOL+/-: speaker/ringer volume control
10 dedicated memory keys
` Strap functions (diode options):
MLA: Memory Location Access selection
RDS: Enable/Disable ringer validation delay (PCD3332-2)
DOO: enable/disable transmission * or # (PCD3332-3/S)
F/E: register recall Flash or Earth
M/S: Mark-to-Space ratio selection (3 : 2 or 2 : 1)
APT: Access Pause Timing selection
TBT: Tone Burst Time selection
FTS: Flash Time Selection
P/T: Pulse or Tone (DTMF) mode selection
RMS: Ringer Melody Selection (PCD3332-2 and PCD3332-S)
RFS: Ringer input frequency range selection (19.5 to 57 Hz or 14.4 to 68 Hz) (PCD3332-3)
` Ringer tone generator
` Ringer-input frequency discriminator
` Ringer melody selection via keypad
` Volume control for loudspeaker phones (PCD3332-3)
` On-hook dialling/hands-free mode control (PCD3332-3)
` Pacifier tones.
` 13 number repertory dial, up to 32 digits per number
10 one-touch redial or 3 one-touch plus 10 two-touch
250 digits maximum storage
` Last number redial up to 32 digits
` Repertory and redial memory integrity check (memory contents check)
` Notepad memory function
` Flash and Earth register recall
` Access pause generation and termination
` On-chip power-on reset
` Supports function keys as follows:
STORE: Program/Store
MRC: Memory Recall
FLASH: calibrated line-break pulse
LNR: Last Number Redial
PAUSE: insert access pause between stored digits
TONE: change from pulse to DTMF dialling (mixed mode)
VOL+/-: speaker/ringer volume control
10 dedicated memory keys
` Strap functions (diode options):
MLA: Memory Location Access selection
RDS: Enable/Disable ringer validation delay (PCD3332-2)
DOO: enable/disable transmission * or # (PCD3332-3/S)
F/E: register recall Flash or Earth
M/S: Mark-to-Space ratio selection (3 : 2 or 2 : 1)
APT: Access Pause Timing selection
TBT: Tone Burst Time selection
FTS: Flash Time Selection
P/T: Pulse or Tone (DTMF) mode selection
RMS: Ringer Melody Selection (PCD3332-2 and PCD3332-S)
RFS: Ringer input frequency range selection (19.5 to 57 Hz or 14.4 to 68 Hz) (PCD3332-3)
` Ringer tone generator
` Ringer-input frequency discriminator
` Ringer melody selection via keypad
` Volume control for loudspeaker phones (PCD3332-3)
` On-hook dialling/hands-free mode control (PCD3332-3)
` Pacifier tones.

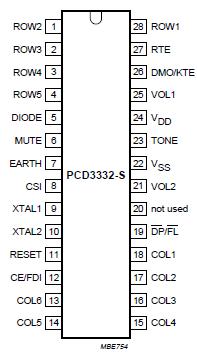

PCD3332-S Connection Diagram
