PCE84C487

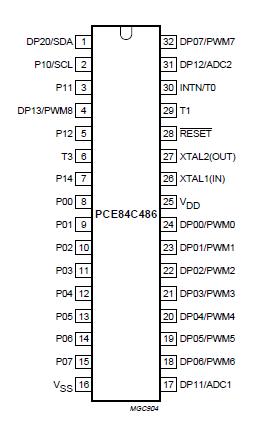

The PCE84C486 and PCE84C487 are low-cost microcontrollers and have been designed for use with auto-sync monitors, handling mode detection, digital control and Voltage Synthesized Tuning (VST). These microcontrollers have no on-chip OSD function.

The term PCE84C48X is used throughout this data sheet to refer to both devices. Differences between the PCE84C486 and the PCE84C487 are highlighted throughout the document.

The PCE84C48X is a member of the 84CXXX CMOS microcontroller family. The device uses the PCE84CXX processor core and has 4 kbytes of ROM and 128 bytes of RAM. I/O requirements are catered for with 11 general purpose bidirectional I/O lines (the PCE84C487 has 12) plus 12 function combined I/O lines (the PCE84C487 has 16). Nine PWM analog outputs (the PCE84C487 has 13) are available for analog control purposes and also a two channel 4-bit ADC. The device has an 8-bit counter (T3), for use in pulse counting applications and also an 8-bit timer/counter (T1) with programmable clock. A Watchdog timer, a master-slave I2C-bus interface and 2 directly testable lines are also available on-chip.

The block diagram of the PCE84C486 is shown in Fig.1; the block diagram of the PCE84C487 is shown in Fig.2.
