Product Details

Description



Features:

· Driving standard 31/2 or a 4-digit LCD
· Internal voltage regulator for 5 V LCD
· Option for external stabilized voltage supply
· 4.19 MHz oscillator
· Integrated oscillator output capacitor and polarization resistor
· Operating ambient temperature: -40 to +85 °C
· 40-lead plastic SMD, face down (VSO40).


Pinout

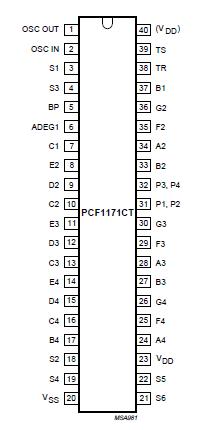

Connection Diagram


Description

The PCF1171C is a single chip, 4.19 MHz CMOS car clock circuit indicating hours and minutes. It is designed to drive a 31/2 or 4-digit liquid crystal display (LCD).

Two external single-pole, single-throw switches of PCF1171C will accomplish all time setting functions. A bonding option allows the selection of 12-hour or 24-hour display mode. The circuit is battery-operated via an internal 5 V voltage regulator or by an external stabilized voltage supply.
