Part Number: PCF8584



MFG: PHILIPS

Package Cooled: SOP

D/C: 09+

Description: The PCF8584 is an integrated circuit designed in CMOS technology which serves as an interface between most standard par...


Urgent Purchase

PCF8584 General Description


The PCF8584 is an integrated circuit designed in CMOS technology which serves as an interface between most standard parallel-bus microcontrollers/microprocessors and the serial I2C-bus. The PCF8584 provides both master and slave functions.

Communication with the I2C-bus is carried out on a byte-wise basis using interrupt or polled handshake. It controls all the I2C-bus specific sequences, protocol, arbitration and timing. The PCF8584 allows parallel-bus systems to communicate bidirectionally with the I2C-bus.

PCF8584 Maximum Ratings

SYMBOL PARAMETER MIN. MIN. UNIT
VCC Supply voltage -0.3 +7.0 V
VI voltage range (any input) -0.8 VDD +7.0 V
II DC input current (any input) -10 +10 mA
IO DC output current (any output) -10 +10 mA
Ptot
 total power dissipation - 300 mW
PO power dissipation per output - 50 mW
Tamb Operating free-air temperature -40 +85
Tstg Storage temperature -65 +150

PCF8584 Features

· Parallel-bus to I2C-bus protocol converter and interface
· Compatible with most parallel-bus microcontrollers/microprocessors including 8049, 8051, 6800, 68000 and Z80
· Both master and slave functions
· Automatic detection and adaption to bus interface type
· Programmable interrupt vector
· Multi-master capability
· I2C-bus monitor mode
· Long-distance mode (4-wire)
· Operating supply voltage 4.5 to 5.5 V
· Operating temperature range: -40 to +85 °C.

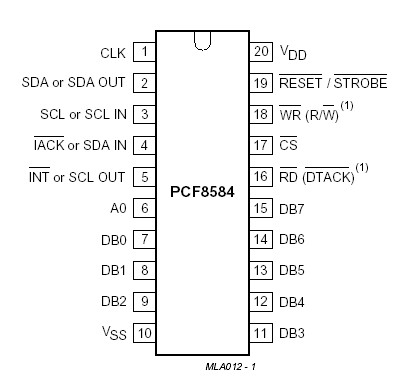

PCF8584 Connection Diagram

PCF8584 Connection Diagram

PCF8584 datasheet
