Product Details

Description



Features:

• PCI bus target only, supporting both single-word reads and writes
• Write transaction posting for improved PCI bus performance
• Provides glueless interface to host port interface (HPI) port of C54x and/or C6x
• Up to four DSP devices on HPI
• Allows direct access to program and control external devices connected to PCI2040
• Serial ROM interface for loading subsystem ID and subsystem vendor ID
• A 16-bit general-purpose bus (GPB) that provides glueless interface to TI JTAG TBC
• 3.3-V core logic with universal PCI interface compatible with 3.3-V or 5-V signaling environments
• Advanced submicron, low-power CMOS technology
• 144-pin device and choice of surface mount packaging: TQFP or 12 mm x 12 mm MicroStar BGA
• Up to 33 MHz PCI bus frequency


Pinout

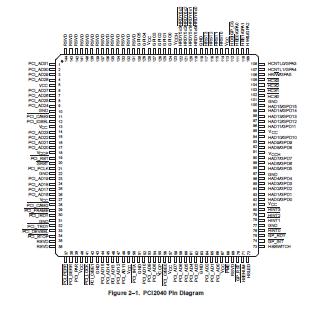

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 3.6 V
Supply voltage range, VCCP . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 5.5 V
Supply voltage range, VCCH . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 5.5 V
Input voltage range, VI: PCI . . . . . . . . . . . . . . . . . . 0.5 V to VCCP + 0.5 V
HPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to VCCH + 0.5 V
Output voltage range, VO: PCI . . . . . . . . . . . . . . . . .0.5 V to VCCP + 0.5 V
HPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 to VCCH + 0.5 V
Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 to VCCH + 0.5 V
Fail safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC) (see Note 1) . . . . . . . ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) (see Note 2) . . . . .±20 mA
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Virtual junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C


Description

The TI PCI2040 is a PCI-DSP bridge that provides a glueless connection between the 8-bit host port interface (HPI) port on the TMS320C54X or the 16-bit HPI port on TMS320C6X to the high performance PCI bus. It provides a PCI bus target interface compliant with the PCI Local Bus Specification.

The PCI2040 provides several external interfaces: the PCI bus interface with compact PCI support, the HPI port interface with support for up to four DSPs, a serial ROM interface, a general-purpose input/output interface (GPIOs), and a 16-bit general-purpose bus to provide a glueless interface to TI JTAG test bus controller (TBC). The PCI2040 universal target-only PCI interface is compatible with 3.3-V or 5-V signaling environments.

The PCI2040 interfaces with DSPs via a data bus (HPI port). The PCI2040 also provides a serial ROM interface for preloading several registers including the subsystem ID and subsystem vendor ID. The PCI2040, compliant with the latest PCI Bus Power Management Interface Specification, provides several low-power features that reduce power consumption. Furthermore, an advanced CMOS process achieves low system power consumption.

Unused PCI2040 inputs must be pulled to a valid logic level using a pullup resistor.
