PCM1601
-
Suppliers
DataSheet
General Description
PCM1601 General Description
The PCM1600(1) and PCM1601(1) are CMOS mono-lithic integrated circuits which feature six 24-bit audio digital-to-analog converters and support circuitry in either a LQFP-48 or MQFP-48 package. The digital-to-analog converters utilize Burr-Brown's enhanced multi-level, delta-sigma architecture, which employ 4th-order noise shaping and 8-level amplitude quanti-zation to achieve excellent signal-to-noise performance and a high tolerance to clock jitter.
The PCM1600 and PCM1601 accept industry-stan-dard audio data formats with 16- to 24-bit audio data.
Sampling rates up to 100kHz are supported. A full set of user-programmable functions are accessible through a 4-wire serial control port which supports register write and readback functions.
PCM1601 Maximum Ratings
Power Supply Voltage, VDD ..............................................................+4.0V
VCC ..............................................................+6.5V
+VCC to +VDD Difference .............................................................. ±0.1V
Digital Input Voltage......................................................... 0.2V to +5.5V
Digital Output Voltage(1) ....................................... 0.2V to (VDD + 0.2V)
Input Current (except power supply)............................................ ±10mA
Power Dissipation .........................................................................650mW
Operating Temperature Range............................................. 0 to +70
Storage Temperature..................................................... 55 to +125
Lead Temperature (soldering, 5s) .............................................. +260
Package Temperature (IR reflow, 10s) ........................................ +235
NOTE: (1) Pin 33 (MDO) when output is disabled.
PCM1601 Features
` 24-BIT RESOLUTION
` ANALOG PERFORMANCE:
` Dynamic Range:
105dB typ
SNR: 104dB typ
THD+N: 0.0018% typ
Full-Scale Output: 3.1Vp-p typ
` 8x OVERSAMPLING INTERPOLATION FILTER:
Stopband Attenuation: 82dB
Passband Ripple: ±0.002dB
` SAMPLING FREQUENCY: 10kHz to 100kHz
ACCEPTS 16, 18, 20, AND 24-BIT AUDIO DATA
` DATA FORMATS: Standard, I2S, and Left-Justified
SYSTEM CLOCK: 256fS, 384fS, 512fS, or 768fS
` USER-PROGRAMMABLE FUNCTIONS:
Digital Attenuation: 0dB to 63dB, 0.5dB/Step Soft Mute
Zero Detect Mute
Zero Flags for Each Output Channel
Digital De-Emphasis
Digital Filter Roll-Off: Sharp or Slow
` DUAL SUPPLY OPERATION:
+5V Analog, +3.3V Digital
5V TOLERANT DIGITAL LOGIC INPUTS
` PACKAGES(1) : LQFP-48 (PCM1600) and MQFP-48 (PCM1601)
PCM1601 Typical Application
· INTEGRATED A/V RECEIVERS
· DVD MOVIE AND AUDIO PLAYERS
· HDTV RECEIVERS
· CAR AUDIO SYSTEMS
· DVD ADD-ON CARDS FOR HIGH-END PCs
· DIGITAL AUDIO WORKSTATIONS
· OTHER MULTI-CHANNEL AUDIO SYSTEMS

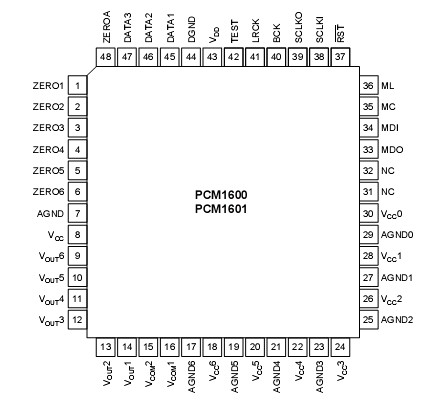

PCM1601 Connection Diagram
PCM1601
