Description: The PCM1602 is a CMOS monolithic integrated circuit that features six 24-bit audio Digital-to-Analog C...
- Table of contents:
PCM1602
-
Suppliers
DataSheet
General Description
PCM1602 General Description
The PCM1602 is a CMOS monolithic integrated circuit that features six 24-bit audio Digital-to-Analog Convert- ers (DACs) and support circuitry in a small LQFP-48 package. The DACs utilize Texas Instrument's enhanced multilevel, delta-sigma architecture that employs fourth-order noise shaping and 8-level amplitude quantization to achieve excellent signal-to-noise performance and a high tolerance to clock jitter.
The PCM1602 accepts industry-standard audio data formats with 16- to 24-bit audio data. Sampling rates up to 200kHz (channels 1 and 2) or 100kHz (channels 3, 4, 5, and 6) are supported. A full set of user-programmable functions are accessible through a 4-wire serial control port that supports register write and read functions.
PCM1602 Maximum Ratings
Power Supply Voltage, VDD ..............................................................+4.0V
VCC ..............................................................+6.5V
Ground Voltage Differences..............................................................±0.1V
Digital Input Voltage................................................0.3V to (6.5V + 0.3V)
Input Current (except power supply)............................................. ±10mA
Operating Temperature Under Bias.................................. 40 to +125
Storage Temperature........................................................ 55 to +150
Junction Temperature .................................................................... +150
Lead Temperature (soldering, 5s)................................................. +260
Package Temperature (IR reflow, 10s) .......................................... +235
PCM1602 Features
` 24-BIT RESOLUTION
` ANALOG PERFORMANCE:
Dynamic Range: 100dB typ (PCM1602Y)
105dB typ (PCM1602KY)
SNR: 100dB typ (PCM1602Y)
105dB typ (PCM1602KY)
THD+N: 0.003% typ (PCM1602Y)
0.002% typ (PCM1602KY)
Full-Scale Output: 3.1Vp-p typ
` 4x/8x OVERSAMPLING INTERPOLATION FILTER:
Stopband Attenuation: 55dB
Passband Ripple: ±0.03dB
` SAMPLING FREQUENCY:
5kHz to 200kHz (Channels 1 and 2)
5kHz to 100kHz (Channels 3, 4, 5, and 6)
` ACCEPTS 16-, 18-, 20-, AND 24-BIT AUDIO DATA
` DATA FORMATS: Standard, I2S, and Left-Justified
` SYSTEM CLOCK: 128, 192, 256, 384, 512, or 768fS
` USER-PROGRAMMABLE FUNCTIONS:
Digital Attenuation: 0dB to 63dB, 0.5dB/Step Soft Mute
Zero Flags May Be Used As General- Purpose Logic Output
Digital De-Emphasis
Digital Filter Roll-Off: Sharp or Slow
` DUAL-SUPPLY OPERATION:
` +5V Analog, +3.3V Digital
` +5V TOLERANT DIGITAL LOGIC INPUTS
` PACKAGE: LQFP-48
PCM1602 Typical Application
· INTEGRATED A/V RECEIVERS
· DVD MOVIE AND AUDIO PLAYERS
· HDTV RECEIVERS
· CAR AUDIO SYSTEMS
· DVD ADD-ON CARDS FOR HIGH-END PCs
· DIGITAL AUDIO WORKSTATIONS
· OTHER MULTICHANNEL AUDIO SYSTEMS

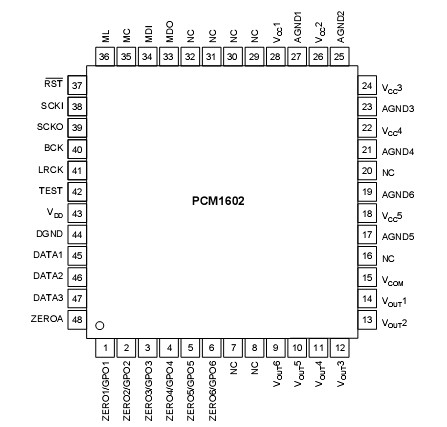

PCM1602 Connection Diagram
PCM1602
