PCM1605

·  INTEGRATED A/V RECEIVERS
·  DVD MOVIE AND AUDIO PLAYERS
·  HDTV RECEIVERS
·  CAR AUDIO SYSTEMS
·  DVD ADD-ON CARDS FOR HIGH-END PCs
·  DIGITAL AUDIO WORKSTATIONS
·  OTHER MULTI-CHANNEL AUDIO SYSTEMS

Power Supply Voltage, V_DD .........................+4.0V
V_CC ..............................................................+6.5V
Digital Input Voltage...................... 0.2V to +5.5V
Digital Output Voltage⁽¹⁾ ... 0.2V to (V_DD  + 0.2V)
Input Current (except power supply)......... ±10mA
Power Dissipation ......................................650mW
Operating Temperature Range...... 25 to +85
Storage Temperature.................. 55 to +125
Lead Temperature (soldering, 5s)............  +260
Package Temperature (IR reflow, 10s) ..... +235

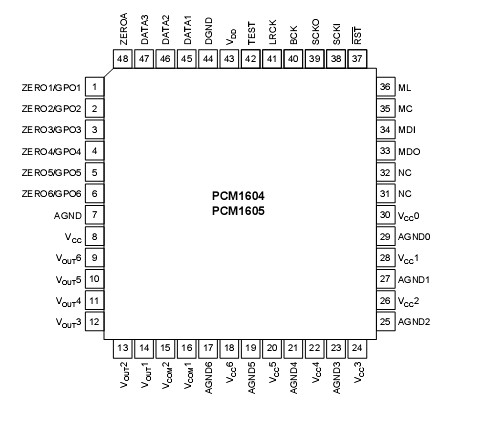

NOTE: (1) Pin 33 (MDO) when output is disabled.

The PCM1604⁽¹⁾ and PCM1605⁽¹⁾ are CMOS mono-lithic integrated circuits which feature six 24-bit audio digital-to-analog converters, and support circuitry in a small QFP-48 package. The digital-to-analog convert-ers PCM1605 utilize Burr-Brown's enhanced multi-level, delta-sigma architecture, which employs 4th-order noise shaping and 8-level amplitude quantization to achieve excellent signal-to-noise performance, and a high tol-erance to clock jitter.

The PCM1604 and PCM1605 accept industry-stan-dard audio data formats with 16- to 24-bit audio data.

Sampling rates up to 200kHz are supported. A full set of user-programmable functions are accessible through a 4-wire serial control port which supports register write and readback functions.

NOTE: (1) The PCM1604 and PCM1605 utilize the same die and are electrically identical. All references to the PCM1604 apply equally to the PCM1605.
NOTE: (1) The PCM1604 and PCM1605 utilize the same die and are electrically identical. All references to the PCM1604 apply equally to the PCM1605.
