General Description
PCM1716 General Description
The PCM1716 is designed for Mid to High gradeDigital Audio applications which achieve 96kHz sam-pling rates with 24-bit audio data. PCM1716 uses anewly developed, enhanced multi-level delta-sigmamodulator architecture that improves audio dynamicperformance and reduces jitter sensitivity in actualapplications.
The internal digital filter operates at 8x over samplingat a 96kHz sampling rate, with two kinds of roll-offperformances that can be selected: sharp roll-off, orslow roll-off, as required for specific applications.PCM1716 is suitable for Mid to High grade audioapplications such as CD, DVD-Audio, and MusicInstruments, since the device has superior audiodynamic performance, 24-bit resolution and 96kHzsampling.
PCM1716 Maximum Ratings
Power Supply Voltage ...................................................................... +6.5V
+VCC to +VDD Difference ................................................................... ±0.1V
Input Logic Voltage .................................................. 0.3V to (VDD + 0.3V)
Input Current (except power supply) .............................................. ±10mA
Power Dissipation ........................................................................... 400mW
Operating Temperature Range ....................................... 25°C to +85°C
Storage Temperature ................................................... 55°C to +125°C
Lead Temperature (soldering, 5s) ................................................. +260°C
+VCC to +VDD Difference ................................................................... ±0.1V
Input Logic Voltage .................................................. 0.3V to (VDD + 0.3V)
Input Current (except power supply) .............................................. ±10mA
Power Dissipation ........................................................................... 400mW
Operating Temperature Range ....................................... 25°C to +85°C
Storage Temperature ................................................... 55°C to +125°C
Lead Temperature (soldering, 5s) ................................................. +260°C
PCM1716 Features
ENHANCED MULTI-LEVEL DELTA-SIGMA DAC
SAMPLING FREQUENCY (fs): 16kHz - 96kHz
INPUT AUDIO DATA WORD:16-, 20-, 24-Bit
HIGH PERFORMANCE:THD+N: 96dBDynamic Range: 106dBSNR: 106dBAnalog Output Range: 0.62 x VCC (Vp-p)
8x OVERSAMPLING DIGITAL FILTER:Stop Band Attenuation: 82dBPassband Ripple: ±0.002dBSlow Roll Off
MULTI FUNCTIONS:Digital De-emphasisL/R Independent Digital AttenuationSoft MuteZero Detect MuteZero FlagChip SelectReversible Output Phase
+5V SINGLE SUPPLY OPERATION
SAMPLING FREQUENCY (fs): 16kHz - 96kHz
INPUT AUDIO DATA WORD:16-, 20-, 24-Bit
HIGH PERFORMANCE:THD+N: 96dBDynamic Range: 106dBSNR: 106dBAnalog Output Range: 0.62 x VCC (Vp-p)
8x OVERSAMPLING DIGITAL FILTER:Stop Band Attenuation: 82dBPassband Ripple: ±0.002dBSlow Roll Off
MULTI FUNCTIONS:Digital De-emphasisL/R Independent Digital AttenuationSoft MuteZero Detect MuteZero FlagChip SelectReversible Output Phase
+5V SINGLE SUPPLY OPERATION

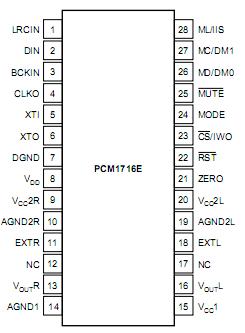

PCM1716 Connection Diagram
PCM1716
