MFG:N/A Package Cooled:NA/ D/C:09+
MFG: N/A
Package Cooled: NA/
D/C: 09+
Description: PCM1800 is a low cost, single chip stereo analog-to-digital converter with single-ended analog voltage...
PCM1800 is a low cost, single chip stereo analog-to-digital converter with single-ended analog voltage inputs. The PCM1800 uses a delta-sigma modulator with 64X oversampling, including a digital decima-tion filter and serial interface which supports both Master and Slave Modes and four data formats.
PCM1800 is suitable for a wide variety of cost-sensi-tive consumer applications where high performance is required.
PCM1800 is fabricated on a highly advanced CMOS process.
Supply Voltage: +VDD, +VCC ............................................................. +6.5V
Supply Voltage Differences................................................................±0.1V
GND Voltage Differences....................................................................±0.1V
Digital Input Voltage.................................................0.3V to (VDD + 0.3V)
Analog Input Voltage................................................0.3V to (VCC + 0.3V)
Input Current (any pin except supplies) ...........................................±10mA
Power Dissipation ............................................................................300mW
Operating Temperature Range ............................................ 25 to +85
Storage Temperature......................................................... 55 to +125
Lead Temperature (soldering, 5s).................................................... +260
(reflow, 10s) .................................................................................... +235
` DUAL 20-BIT MONOLITHIC ADC
SINGLE-ENDED VOLTAGE INPUT
` 64X OVERSAMPLING DECIMATION FILTER:
Passband Ripple: ±0.05dB
Stopband Attenuation: 65dB
` HIGH PERFORMANCE:
THD+N: -88dB (typ)
SNR: 95dB (typ)
Dynamic Range: 95dB (typ)
` Internal High Pass Filter PCM AUDIO INTERFACE:
Master/Slave Modes
4 Data Formats
` SAMPLING RATE: 32kHz, 44.1kHz, 48kHz
` SYSTEM CLOCK: 256fS , 384fS , or 512fS
` SINGLE +5V POWER SUPPLY

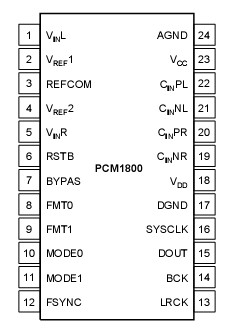

SMALL 24-PIN SSOP PACKAGE
PCM1800
