PCM3006

`MONOLITHIC 16-BIT ADC AND DAC
`STEREO ADC:
`Single-Ended Voltage Input
`64X Oversampling
`High Performance
   THD+N: 84dB
   SNR: 89dB
   Dynamic Range: 89dB
   Digital High Pass Filter
`STEREO DAC:
   Single-Ended Voltage Output
`Analog Low Pass Filter
   8X Oversampling Digital Filter
   High Performance
   THD+N: 85dB
   SNR: 93dB
   Dynamic Range: 93dB
`SPECIAL FEATURES
   Digital De-emphasis
   Power Down: ADC/DAC Independent
`SAMPLING RATE: Up to 48kHz
`SYSTEM CLOCK: 256fS, 384fS, 512fS
`SINGLE +3V POWER SUPPLY

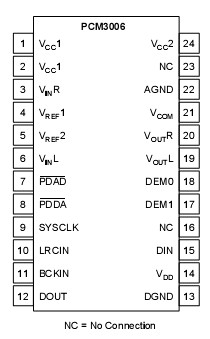

`SMALL PACKAGE: 24-Lead TSSOP

Supply Voltage +V_DD , +V_CC 1, +V_CC 2 ............................................+6.5V
Supply Voltage Differences...............................................................±0.1V
GND Voltage Differences.................................................................. ±0.1V
Digital Input Voltage...................................................0.3 to V_DD  + 0.3V
Analog Input Voltage......................................0.3 to V_CC 1,V_CC 2 + 0.3V
Power Dissipation ..........................................................................300mW
Input Current .................................................................................±10mA
Operating Temperature Range ......................................... 25 to +85
Storage Temperature ......................................................55 to +125
Lead Temperature (soldering, 5s).................................................. +260
(reflow, 10s) .................................................................................. +235

The PCM3006 is a low cost single chip stereo audio CODEC (analog-to-digital and digital-to-analog con-verters) with single-ended analog voltage input and output.

Both ADCs and DACs PCM3006 employ delta-sigma modula-tion with 64X oversampling. The ADCs include a digital decimation filter, and the DACs include an 8X oversampling digital interpolation filter. The DACs also include a de-emphasis function. PCM3006 oper-ates with 16-bit, left-justified for ADC, right-justified for DAC data formats.

PCM3006 provides a Power-Down Mode that oper-ates on the ADCs and DACs independently.

Fabricated on a highly advanced 0.6s CMOS pro-cess, PCM3006 is suitable for a wide variety of cost-sensitive consumer applications where good performance is required. Applications of PCM3006 include sam-pling keyboards, digital mixers, effects processors, hard-disk recorders, data recorders and digital video cameras.
