PCM4104

` Four High-Performance, Multi-Level,
  Delta-Sigma Digital-to-Analog Converters
` Differential Voltage Outputs
  -  Full-Scale Output (Differential): 6.15V_PP
` Supports Sampling Frequencies up to 216kHz
` Typical Dynamic Performance (24-Bit Data)
  -  Dynamic Range (A-Weighted): 118dB
  -  THD+N: -100dB
` Linear Phase, 8x Oversampling Digital Interpolation Filter
` Digital De-Emphasis Filters for 32kHz, 44.1kHz, and 48kHz Sampling Rates
` Soft Mute Function
  -  All-Channel Mute via the MUTE Input Pin
  -  Per-Channel Mute Available in Software Mode
` Digital Attenuation (Software Mode Only)
  -  Attenuation Range: 0dB to -119.5dB
  -  256 Steps with 0.5dB per Step
` Output Phase Inversion (Software Mode Only)
` Zero Data Mute (Software Mode Only)
` Audio Serial Port
  -  Supports Left-Justified, Right-Justified, I<sup>2</sup>S<sup>TM</sup>, and TDM Data Formats
  -  Accepts 16-, 18-, 20, and 24-Bit Two's Complement PCM Audio Data
` Standalone or Software-Controlled Configuration Modes
` Four-Wire Serial Peripheral Interface (SPI<sup>TM</sup>) Port Provides Control Register Access in Software Mode
` Power Supplies: +5V Analog, +3.3V Digital
` Power Dissipation
  -  203mW typical with f<sub>S</sub>  = 48kHz
  -  220mW typical with f<sub>S</sub>  = 96kHz
  -  236mW typical with f<sub>S</sub>  = 192kHz
` Power-Down Modes

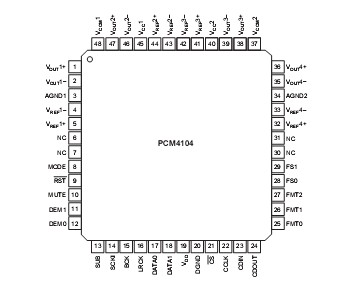

` Small 48-Lead TQFP Package

· Digital Mixing Consoles
· Digital Audio Workstations
· Digital Audio Effects Processors
· Broadcast Studio Equipment
· Surround-Sound Processors
· High-End A/V Receivers

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied.

The PCM4104 is a high-performance, four-channel digital-to-analog (D/A) converter designed for use in professional audio applications. The PCM4104 supports 16- to 24-bit linear PCM input data, with sampling frequencies up to 216kHz. The PCM4104 features lower power consumption than most comparable stereo audio D/A converters, making it ideal for use in high channel count applications by lowering the overall power budget required for the D/A conversion sub-system.

The PCM4104 features delta-sigma architecture, employing a high-performance multi-level modulator combined with a switched capacitor output filter. This architecture yields lower out-of-band noise and a high tolerance to system clock phase jitter. Differential voltage outputs are provided for each channel and are well-suited to high-performance audio applications. The differential outputs of PCM4104 are easily converted to a single-ended output using an external op amp IC.

The PCM4104 includes a flexible audio serial port interface, which supports standard and time division multiplexed (TDM) formats. Support for TDM formats simplifies interfacing to DSP serial ports, while supporting a cascade connection for two PCM4104 devices. In addition, the PCM4104 offers two configuration modes: Standalone and Software-Controlled. The Standalone mode provides dedicated control pins for configuring a subset of the available PCM4104 functions, while Software mode utilizes a serial peripheral interface (SPI) port for accessing the complete feature set via internal control registers.

The PCM4104 operates from a +5V analog power supply and a +3.3V digital power supply. The digital I/O is compatible with +3.3V logic families. The PCM4104 is available in a TQFP-48 package.
