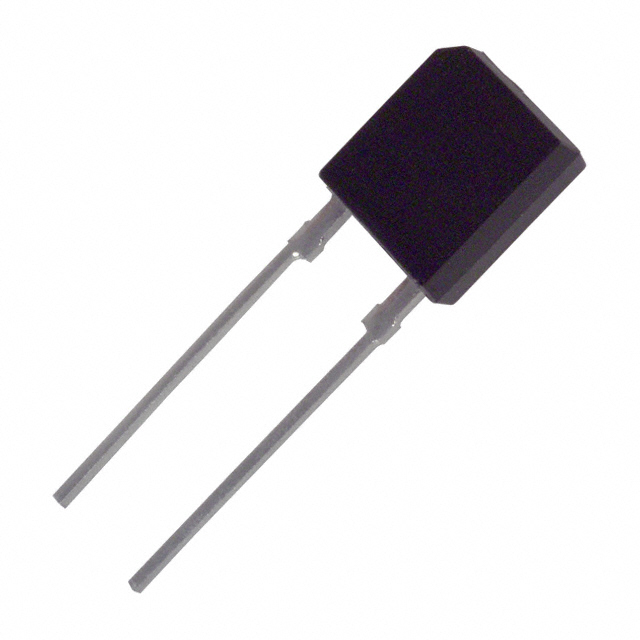

See larger image

SeekIC No. : 004137132 Detail

PD480PI: PHOTODIODE IR 950NM SIDE LOOK

PD480PI Data Sheet

Get Latest Price

Part Number:: PD480PI
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PD480PI1 evaluate
Features: ` High speed response tr, tf:TYP. 100ns at RL=1k)` Narrow acceptance ( :TYP. ± 20° )` Co...
PD481PI evaluate
PHOTODIODE BLACK 960NM SIDE
PD481PIE000F evaluate
PHOTODIODE BLACK 960NM SIDE

Product Details

Quick Details

Series:	-	Supply Voltage - Min :	1.2 V
Manufacturer:	Sharp Microelectronics	Wavelength:	950nm
Color - Enhanced:	-	Spectral Range:	400nm ~ 1200nm
Diode Type:	-	Responsivity @ nm:	-
Response Time:	100ns	Voltage - DC Reverse (Vr) (Max):	20V
Current - Dark (Typ):	10nA	Active Area:	-
Viewing Angle:	40°	Operating Temperature:	-25°C ~ 85°C

Description

Series: -
Color - Enhanced: -
Responsivity @ nm: -
Response Time: 100ns
Wavelength: 950nm
Active Area: -
Viewing Angle: 40°
Diode Type: -
Operating Temperature: -25°C ~ 85°C
Current - Dark (Typ): 10nA
Voltage - DC Reverse (Vr) (Max): 20V
Package / Case: Side View
Manufacturer: Sharp Microelectronics
Spectral Range: 400nm ~ 1200nm

Features:

` High speed response t_r, t_f:TYP. 100ns at R_L=1k)
` Narrow acceptance ( :TYP. ± 20° )
` Compact
` Lead forming type (PD480PI1)

Application

· Game machines
· Optoelectronic switches
· Infrared remote controllers for TVs, VCRs, audio equipment, air conditioners, etc.

Specifications

Parameter	Symbol	Rating	Unit
Reverse voltage	V_R	20	V
Power dissipation	P	75	mW
Operating temperature	T _opr	- 25 to + 85
Storage temperature	T _stg	- 40 to + 85
^*1 Soldering temperature	T_sol	260

^*1 For 3 seconds at the position of 2.5mm from the surface of resin edge
