PD8670A

Features: Valid photocell : 7400 pixels Photocell pitch : 4.7 m Photocell size : 4.7 * 4.7 m2Resolution : 24 dot/mm (600 dpi) A3 (297 * 420 mm) size (shorter side) Data rate : 44 MHz MAX. (22 MHz/1 output) Output type : 2 outputs in-phase operation, and out of phase also supported High sensitivi...

product image

PD8670A Picture
See larger image
SeekIC No. : 004457316 Detail

PD8670A: Features: Valid photocell : 7400 pixels Photocell pitch : 4.7 m Photocell size : 4.7 * 4.7 m2Resolution : 24 dot/mm (600 dpi) A3 (297 * 420 mm) size (shorter side) Data rate : 44 MHz MAX. (22 MHz/...

PD8670A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PD8670A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Valid photocell  : 7400 pixels
Photocell pitch  : 4.7 m
Photocell size  : 4.7 * 4.7 m2
Resolution  : 24 dot/mm (600 dpi) A3 (297 * 420 mm) size (shorter side)
Data rate  : 44 MHz MAX. (22 MHz/1 output)
Output type  : 2 outputs in-phase operation, and out of phase also supported
High sensitivity  : 17.0 V/lx*s TYP. (Light source: Daylight color fluorescent lamp)
Peak response wavelength : 550 nm (green)
Low image lag  : 1 % MAX.
Drive clock level  : CMOS output under +5 V operation
Power supply  : +12 V
On-chip circuits  : Reset feed-through level clamp circuits
                            Voltage amplifiers






Pinout

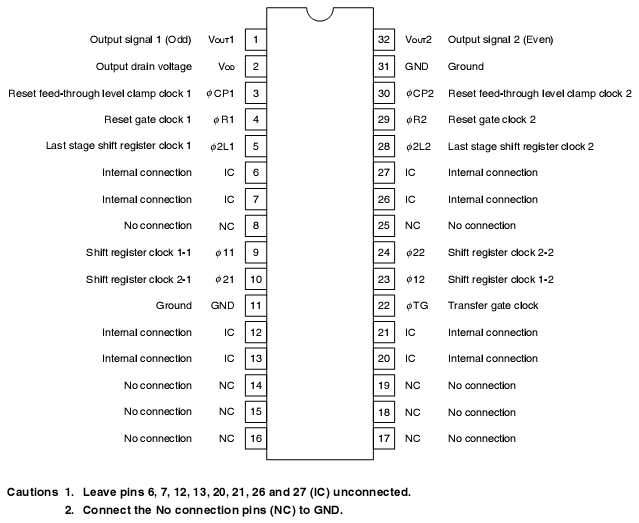

Connection Diagram


Specifications

Parameter Symbol Ratings Unit
Output drain voltage VOD -0.3 to +14.0 V
Shift register clock voltage V 1, V 2 -0.3 to +8.0 V
Last stage shift register clock voltage V2L -0.3 to +8.0 V
Reset gate clock voltage V R -0.3 to +8.0 V
Transfer gate clock voltage V TG -0.3 to +8.0 V
Reset feed-through level clamp clock voltage V CP -0.3 to +8.0 V
Operating ambient temperatureNote TA 0 to +60
Storage temperature Tstg -40 to +70
