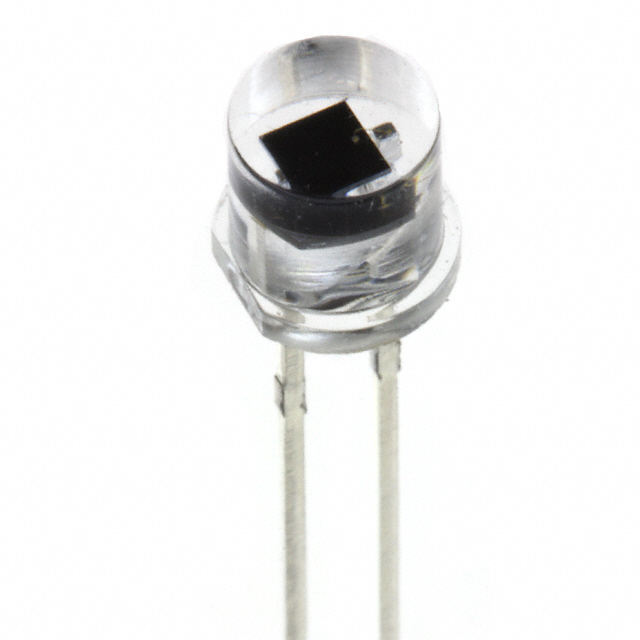

PDB-C139

Series: -
Diode Type: PIN
Responsivity @ nm: -
Wavelength: 950nm
Color - Enhanced: Blue
Manufacturer: Advanced Photonix Inc
Response Time: 50ns
Voltage - DC Reverse (Vr) (Max): 50V
Operating Temperature: -40°C ~ 80°C
Spectral Range: 700nm ~ 1100nm
Current - Dark (Typ): 5nA
Active Area: 2.03mm x 2.03mm (4.1mm²)
Package / Case: Radial, 5mm Dia (T 1 3/4)
Viewing Angle: 59°


Parameters:

Technical/Catalog Information	PDB-C139
Vendor	Advanced Photonix Inc.
Category	Sensors, Sensor Evaluation Kits
Mounting Type	Through Hole
Package Name	Radial T-1 3/4 (5mm)
Viewing Angle	59° [Typ]
Wavelength	950 nm [Typ]
Short Circuit Current	45.00 A [Min]
Short Circuit Current	67.00 A [Typ]
Dark Current	30.0 nA [Max]
Dark Current	5.0 nA [Typ]
Operating Temperature	-40 °C [Min]
Operating Temperature	80 °C [Max]
Fall Time	50.000 ns [Typ]
Rise Time	50.00 ns [Typ]
Active Area	4.1000 mm2 [Nom]
Breakdown Voltage	15.00 V [Min]
Breakdown Voltage	25.00 V [Typ]
Diameter	5.8000 mm [Typ]
Height	5.410 mm [Typ]
Housing Material	Plastic
Junction Capacitance	18 pF [Typ]
Lead Length	26.500 mm [Typ]
Lens Material	Plastic
Packaging	Bulk
Pitch	2.540 mm [Nom]
Reverse Voltage	50.0 V [Max]
Shape	Cylindrical, Flat Top
Termination Style	PC Pin
Type	Blue Enhanced
Type	Photoconductive
Type	Detector
Lead Free Status	Request Inventory Verification
RoHS Status	Request Inventory Verification
Other Names	PDB C139 PDBC139
