Part Number: PE200GB
Description: Power Thyristor/Diode Module PK200GB series are designed for various rectifier
- Table of contents:
PE200GB
-
Suppliers
DataSheet
General Description
PE200GB General Description
Power Thyristor/Diode Module PK200GB series are designed for various rectifier circuits and power controls. For your circuit application. following internal connections and wide voltage ratings up to 800V are available.
PE200GB Maximum Ratings
|
Symbol |
Item |
Ratings |
Unit | ||
|
PK200GB40 PD200GB40 PE200GB40 |
PK200GB80 PD200GB80 PE200GB80 | ||||
|
VRRM |
Repetitive Peak Reverse Voltage |
400 |
800 |
V | |
|
VRSM |
Non-Repetitive Peak Reverse Voltage |
800 |
1700 |
V | |
|
VDRM |
Repetitive Peak Off-state Voltage |
400 |
800 |
V | |
|
Symbol |
Item |
Conditions |
Ratings |
Unit | |
|
IT(AV) |
*Average On-state Current | Single phase, half wave, 180conduction, Tc:74 |
200 |
A | |
|
IT(RMS) |
*R.M.S. On-state Current | Single phase, half wave, 180conduction, Tc:72=4 |
310 |
A | |
|
ITSM |
*Surge On-state Current | 1/2 cycle, 50Hz/60Hz, Peak value,Non-repetitive |
5000/5500 |
A | |
|
I2t |
*I2t | Value for one cycle surge current |
125000 |
A2s | |
|
PGM |
Peak Gate Power Dissipation |
10 |
W | ||
|
PG(AV) |
Average Gate Power Dissipation |
3 |
W | ||
|
IFGM |
Peak Gate Current |
3 |
A | ||
|
VFGM |
Peak Gate Voltage (Forward) |
10 |
V | ||
|
VRGM |
Peak Gate Voltage (Reverse) |
5 |
V | ||
|
di/dt |
Critical Rate of Rise of On-state Current | IG=100mA,Tj=25,VD=1/2,VDRM,dIG/dt=0.1A/s |
200 |
A/s | |
|
VISO |
*Isolation Breakdown Voltage | A.C. 1 minute |
2500 |
||
|
Tj |
*Operating Junction Temperature |
-40 to +125 |
|||
|
Tstg |
*Storage Temperature |
-40 to +125 |
|||
| Mounting Torque |
Mounting (M5) | Recommended Value 1.5-2.5(15-25) |
2.7(28) |
N.m (kgf.cm) | |
| Terminals (M8) | Recommended Value 8.8-10 (90-105) |
11(115) | |||
| Typical Value |
510 |
g | |||
PE200GB Features
` ITAV200A, ITRMS310A, ITSM 5500A
` di/dt 200 A/s
` dv/dt 500V/s
PE200GB Typical Application
· Various rectifiers
· AC/DC motor drives
· Heater controls
· Light dimmers
· Static switches
PE200GB120
PDF/DataSheet Download
- Datasheet: PE200GB120
- File Size: 118310 KB
- Manufacturer:
- Click here to Download
- ·PE2
- Optoelectronic
- 229451 KB
- ·PE200GB160
- THYRISTOR MODULE|SCR|DUAL|CC|800V V(RRM)|200A I(T)
- 118310 KB
- ·PE200GB40
- SANREX [SanRex Corporation]
- THYRISTOR MODULE
- 118852 KB
- ·PE200GB80
- SANREX [SanRex Corporation]
- THYRISTOR MODULE
- 118852 KB
- ·PE200HB120
- SANREX [SanRex Corporation]
- THYRISTOR MODULE
- 112861 KB
- ·PE200HB160
- SANREX [SanRex Corporation]
- THYRISTOR MODULE
- 112861 KB
- ·PE2020
- ETC [ETC]
- 10 Pad Leadless Surface Mount Clock Oscillator,see PE1145B for 6Pad
- 46112 KB
- ·PE2020BE-70.0M-XXX
- ETC [ETC]
- 10 Pad Leadless Surface Mount Clock Oscillator,see PE1145B for 6Pad
- 46112 KB
PE200GB Relative Products
PE1832P0
PWR ENTRY MOD 10A DPST ROCKER SW

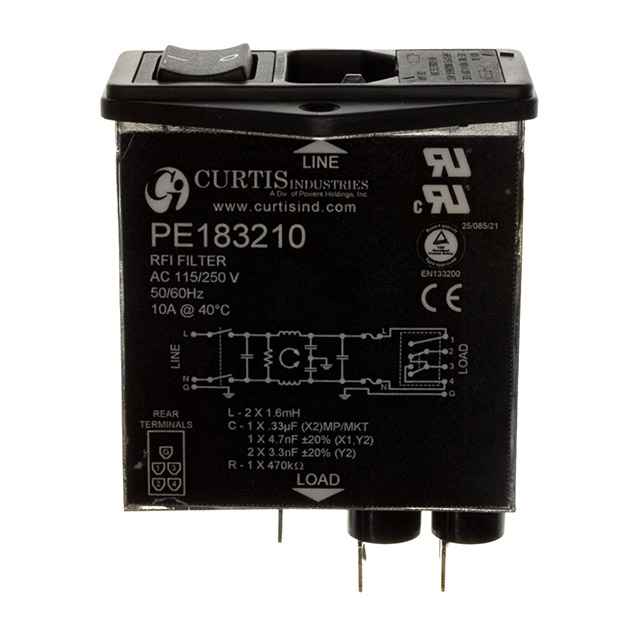

PE183210
