Part Number: PE9763
Description: Peregrine's PE9763 is a high performance fractional-N PLL capable of frequency synthesis up to 3.2 GHz...
- Table of contents:
PE9763
-
Suppliers
DataSheet
General Description
PE9763 General Description
Peregrine's PE9763 is a high performance fractional-N PLL capable of frequency synthesis up to 3.2 GHz. The device is designed for superior phase noise performance while providing an order of magnitude reduction in current consumption, when compared with the existing commercial space PLLs.
The PE9763 features a 10/11 dual modulus prescaler, counters, a delta sigma modulator, a phase comparator and a charge pump as shown in Figure 1. Counter values are programmable through either a serial interface or directly hardwired. PE9763 is optimized for commercial space applications.
Single Event Latch up (SEL) is physically impossible and Single Event Upset (SEU) is better than 10-9 errors per bit / day. Fabricated in Peregrine's patented UTSi® (Ultra Thin Silicon) CMOS technology, the PE9763 offers excellent RF performance and intrinsic radiation tolerance.
PE9763 Maximum Ratings
| Symbol | Parameter/Conditions | Min | Max | Units |
| VDD | Supply voltage | -0.3 | 4.0 | V |
| VI | Voltage on any input | -0.3 | VDD + 0.3 |
V |
| II | DC into any input | -10 | +10 | mA |
| IO | DC into any output | -10 | +10 | mA |
| Tstg | Storage temperature range | -65 | 150 | °C |
PE9763 Features
• 3.2 GHz operation
• ÷10/11 dual modulus prescaler
• Selectable phase detector or charge pump output
• Serial or Direct mode access
• Frequency selectivity: Comparison frequency / 218
• Low power -- 25 - 30 mA at 3V (phase detector / charge pump)
• Rad-Hard
• Ultra-low phase noise
• 68-lead CQFJ or Die
• ÷10/11 dual modulus prescaler
• Selectable phase detector or charge pump output
• Serial or Direct mode access
• Frequency selectivity: Comparison frequency / 218
• Low power -- 25 - 30 mA at 3V (phase detector / charge pump)
• Rad-Hard
• Ultra-low phase noise
• 68-lead CQFJ or Die

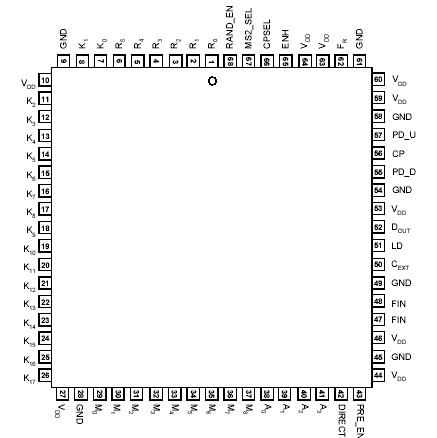

PE9763 Connection Diagram
PE9763
