PEB2025
-
Suppliers
DataSheet
General Description
PEB2025 Maximum Ratings
|
Symbol |
Parameter |
Min |
Max |
Unit |
|
VBAT |
VBAT referred to GND |
-70 |
0.3 |
V |
|
VCC |
VCC referred to GND |
-0.5 |
6 |
V |
|
VF |
Voltage on pins aF0 - aF3 |
VBAT |
VCC |
V |
|
IF |
Continuous current on pins aF0 - aF3 only one channel all channels at the same time; T A = 25 °C all channels at the same time; T A = 70 °C |
200 150 130 |
mA mA mA | |
|
IF |
Reverse current on pins at aF0 - aF3 |
0 |
0 |
mA |
|
VI |
Voltage on any other pins referred to GND |
0.5 |
VCC+0.5 |
V |
|
PD |
Power dissipation |
- |
1 |
W |
|
TA |
Ambient temperature under bias |
25 |
85 |
°C |
|
Tstg |
Storage temperature |
-40 |
125 |
°C |
|
RthSA |
Thermal resistance system to case |
- |
50 |
K/W |
PEB2025 Features
`Supplies power to up to four transmission lines
`CCITT recommendations compatible for power feed at the "S" interface
`Each line is individually powered and controlled
`Wide field of applications:
two- and four wire transmission lines
point-to-point configurations
point-to-multipoint configurations
`Maximum output current programmable up to 150 mA
`Programmable switch-off characteristic by overcurrent detection
`Automatic restart after removing overload conditions
`Status detectors for each line driver
`Microprocessor compatible interface
`Interrupt output for detection of any malfunction
`High voltage CMOS technology (60 V)

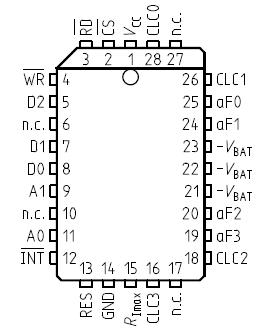

PEB2025 Connection Diagram
PEB2025
PDF/DataSheet Download
- Datasheet: PEB2025
- File Size: 683213 KB
- Manufacturer: Siemens Semiconductor Group
- Click here to Download
- ·PEB 22709
- Siemens Semiconductor Group
- ADSL-L Line Driver(非对称数字用户线（ADSL）线驱动器)
- 91037 KB
- ·PEB 22710
- Siemens Semiconductor Group
- ADSL-L Line Driver(非对称数字用户线（ADSL）线驱动器)
- 91037 KB
- ·PEB 22711
- Siemens Semiconductor Group
- ADSL Analog Front Ends(非对称数字用户线（ADSL）模拟前端)
- 90968 KB
- ·PEB 22713
- Siemens Semiconductor Group
- ADSL Analog Front Ends(非对称数字用户线（ADSL）模拟前端)
- 90968 KB
- ·PEB 24902
- Siemens Semiconductor Group
- Quad ISDN Echocancellor Analog Front End(四 ISDN消声器模拟前端)
- 78853 KB
- ·PEB 4166
- Siemens Semiconductor Group
- Advanced High Voltage Subscriber Line Interface Circuit(先进的高压用户线接口电路)
- 1094670 KB
- ·PEB 7274
- Siemens Semiconductor Group
- 4 Channel ADPCM Controller Quad ADPCM(4通道ADPCM（自适应脉冲音频编码）控制器)
- 927804 KB
- ·PEB1755
- INFINEON [Infineon Technologies AG]
- Semiconductor Solutions for High Speed Communication and Fiber Optic Applications
- 701020 KB
