Part Number: PEB4166









Description: The highly integrated Muslic chip set (see Figure 1) is used to realize an extremely compact analog su...


Urgent Purchase

PEB4166 General Description


The highly integrated Muslic chip set (see Figure 1) is used to realize an extremely compact analog subscriber line interface module. Only a few external components are required and no trimming or adjustment is necessary to meet worldwide recommendations.

PEB4166 Maximum Ratings

Symbol
Parameter
Min
Max
Unit
VBAT
 Battery voltage
-90
0.4
V
VBAT2
VBAT2VBAT
 Battery voltage 2
-90
-0.4
-0.4
-
V
VH
 Auxiliary supply voltage1)
0.4
9
V
VH VBAT
 Total battery supply voltage, continuously
160
V
VDD
 VDD supply voltage
0.4
7
V
VSS
 VSS supply voltage
7
0.4
V
VBGNDVAGND
 Ground voltage difference
0.4
0.4
V
Tj
 Junction temperature
150
°C
VDCP/N
VACP/N
VC1, VC2
 Input voltages
-
-3.5
-0.3
-
VDD+0.4
VDD+0.4

V
V
VIT, VIL
 Voltages on current outputs
-3.5
3.465
V
VR, VT
 RING,TIP voltages2)
see Table 5
  ESD-voltage, all pins
1
-
kV
1) PEB 4166 only
2) min. source resistance: 30

PEB4166 Features

• High voltage line feeding
• Ring signal injection up to 85 Vrms (balanced)1)
• Sensing of transversal and longitudinal line current
• Reliable 170 V Smart Power technology
• Boosted battery mode for long telephone lines1)
• Small P-DSO-20-5 power package
• Second negative battery voltage for power saving at short lines

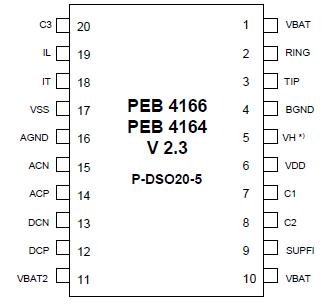

PEB4166 Connection Diagram

PEB4166 Connection Diagram

PEB4166 datasheet
