Part Number: PG100R











Urgent Purchase

PG100R Maximum Ratings

Ratings at 25`` ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
  PG100RS PG101R PG102R PG104R PG106R PG108R UNITS
Maximum Recurrent Peak Reverse Voltage 50 100 200 400 600 800 V
Maximum RMS Voltage 35 70 140 280 420 560 V
Maximum DC Blocking Voltage 50 100 200 400 600 800 V
Maximum Average Forward Rectified
Current .375"(9.5mm) lead length at TA=55 ``		 1.0 A
Peak Forward Surge Current 8.3ms single half sine
wave superimposed on rated load(JECEC method)		 30 A
Maximum Forward Voltage at 1.0A 1.3 V
Maximum Full Load Reverse Current Full Cycle
Average, .375",9.5mm Lead Length at TA=55``		 5.0 ``A
Maximum DC Reverse Current
at Rated DC Blocking Voltage TA=100``		 150 ``A
Maximum Reverse Recovery Time(Note 1) 150 150 150 150 250 250 ns
Typical Junction capacitance (Note 2) 15 PF
Typical Thermal Resistance (Note 3) R``JA 67 ``/W
Operating and Storage Temperature Range TJ -55 to +150 ``
NOTES:
1. Measured with IF=.5A, IR=1A, Irr=.25A
2. Measured at 1 MHz and applied reverse voltage of 4.0 VDC
3. Thermal resistance from junction to ambient at 0.375"(9.5mm) lead length P.C.B. mounted

PG100R Features

·Plastic package has Underwriters Laboratory
  Flammability Classification 94V-O Utilizing
  Flame Retardant Epoxy Molding Compound
·Glass passivated junction
·1 ampere operation at TA=55 ·· with no thermal runaway
·Exceeds environmental standards of MIL-S-19500/228
·Fast switching for high efficiency

PG100R datasheet

PG100R
PDF/DataSheet Download

Find PG100R Suppliers

  • ·PG1001
  •
  • TRANSISTOR | BJT | NPN | 60V V(BR)CEO | 2A I(C) | TO-46
  • 67161 KB
  • PG1001 Datasheet Download
  • ·PG1002
  •
  • TRANSISTOR | BJT | NPN | 80V V(BR)CEO | 2A I(C) | TO-46
  • 67161 KB
  • PG1002 Datasheet Download
  • ·PG1003
  •
  • TRANSISTOR | BJT | NPN | 100V V(BR)CEO | 2A I(C) | TO-46
  • 67161 KB
  • PG1003 Datasheet Download
  • ·PG1004
  •
  • TRANSISTOR | BJT | NPN | 140V V(BR)CEO | 2A I(C) | TO-46
  • 67161 KB
  • PG1004 Datasheet Download
  • ·PG1005
  •
  • TRANSISTOR | BJT | NPN | 160V V(BR)CEO | 2A I(C) | TO-46
  • 67161 KB
  • PG1005 Datasheet Download
  • ·PG1006
  •
  • TRANSISTOR | BJT | NPN | 60V V(BR)CEO | 2A I(C) | TO-46
  • 67161 KB
  • PG1006 Datasheet Download
  • ·PG1007
  •
  • TRANSISTOR | BJT | NPN | 80V V(BR)CEO | 2A I(C) | TO-46
  • 67161 KB
  • PG1007 Datasheet Download
  • ·PG1008
  •
  • TRANSISTOR | BJT | NPN | 100V V(BR)CEO | 2A I(C) | TO-46
  • 67161 KB
  • PG1008 Datasheet Download

Related Part Number

PG100R Relative Products

  • PG-100-102VH

    PG-100-102VH

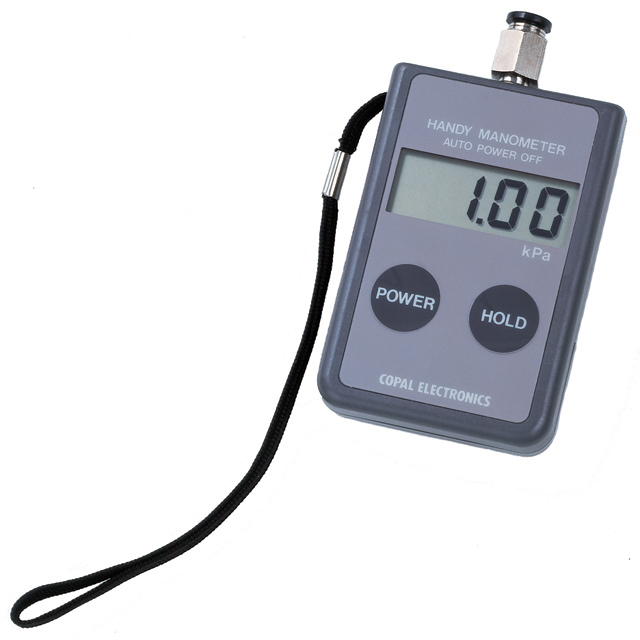

    MANOMETER HANDHELD GAUGE
