Purchase PIC24FJ256GB110, In-stock PIC24FJ256GB110 From SeekIC.
Part Number: PIC24FJ256GB110
Description: Ideal for low power (<100nA standby current) and connectivity applications that benefit from the availability of multiple serial ports (3x...
- Table of contents:
PIC24FJ256GB110
-
Suppliers
DataSheet
General Description
PIC24FJ256GB110 General Description
Ideal for low power (<100nA standby current) and connectivity applications that benefit from the availability of multiple serial ports (3xI2C, 3xSPI), 4xUARTS, and 23 independent timers. Large amounts of RAM (16kB) memory for buffering and large (up to 256kB) Enhanced Flash program memory make it ideal for embedded control and monitoring applications. PPS (peripheral pin select) aids in configuring the most efficient pin configuration of available I/O, and CTMU provides touch support for up to 64 individual buttons. Supports USB 2.0 for device, Host, and OTG with a complete and free software stack that includes a thumb drive application stack. Available in 64, 80, and 100 pin packages.
USB Application Design Center
PIC24FJ256GB110 Maximum Ratings
| Parameter Name | Value |
| Architecture | 16-bit |
| CPU Speed (MIPS) | 16 |
| Memory Type | Flash |
| Program Memory (KB) | 256 |
| RAM Bytes | 16,384 |
| Temperature Range C | -40 to 85 |
| Operating Voltage Range (V) | 2 to 3.6 |
| I/O Pins | 84 |
| Pin Count | 100 |
| System Management Features | BOR, LVD |
| Internal Oscillator | 8 MHz, 32 kHz |
| nanoWatt Features | Low Sleep/Fast Wake/Fast Control |
| Digital Communication Peripherals | 4-UART, 3-SPI, 3-I2C |
| Analog Peripherals | 1-A/D 16x10-bit @ 500(ksps) |
| Comparators | 3 |
| USB (ch, speed, compliance) | 1, Full Speed, USB 2.0 OTG |
| CAN (#, type) | 0 None |
| Capture/Compare/PWM Peripherals | 9/9 |
| 16-bit PWM resolutions | 16 |
| Timers | 5 x 16-bit |
| Parallel Port | PMP |
| Hardware RTCC | Yes |
| DMA | 0 |
PIC-0101F
PDF/DataSheet Download
- Datasheet: PIC-0101F
- File Size: 197141 KB
- Manufacturer:
- Click here to Download
- ·PIC-0103
- KODENSHI [KODENSHI KOREA CORP.]
- Photo IC(photodiode with signal processing)
- 169181 KB
- ·PIC01C724AV0
- 221199 KB
- ·PIC01CB23AV0
- 221199 KB
- ·PIC01CB48AV0
- 221199 KB
- ·PIC-0903
- KODENSHI [KODENSHI KOREA CORP.]
- Photo IC(photodiode with signal processing)
- 148838 KB
- ·PIC1018SCL
- ETC [ETC]
- INFRARED RECEIVER MODULE
- 519374 KB
- ·PIC-1018SCL
- ETC [ETC]
- INFRARED RECEIVER MODULE
- 519374 KB
- ·PIC-1018SMB
- ETC [ETC]
- INFRARED RECEIVER MODULE
- 209405 KB
PIC24FJ256GB110 Relative Products
PIC24FJ256GB108T-I/PT
IC PIC MCU FLASH 256K 80TQFP
PIC24FJ256GB108-I/PT
IC PIC MCU FLASH 256K 80TQFP
PIC24FJ256GB108
PIC24FJ256GB108 is Ideal for low power (<100nA standby current) and connectivity applications that benefit from the availability of multiple serial ports (3xI2C, 3xSPI), 4xUARTS, and 23 independent timers. Large amounts of RAM (16kB) memory for buffering ...
PIC24FJ256GB106T-I/PT
IC PIC MCU FLASH 256K 64-TQFP

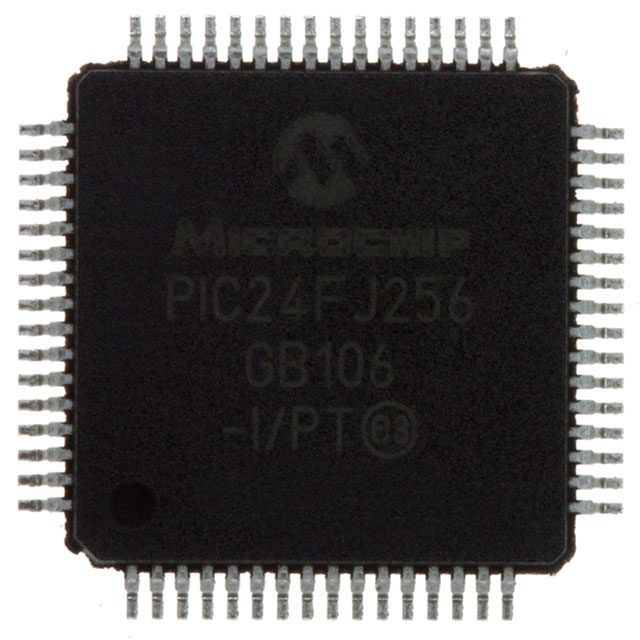

PIC24FJ256GB106-I/PT
IC PIC MCU FLASH 256K 64-TQFP

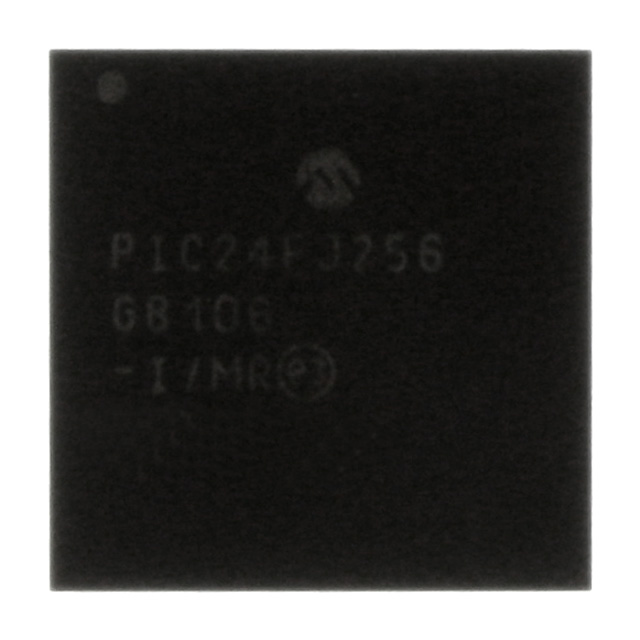

PIC24FJ256GB106-I/MR
