PIP201-12M-3

Features: ·Input conversion range from 3.3 V to 12 V·Output voltages from 0.8 V to 5 V·Capable of up to 20 A continuous output current·Operating frequency up to 1 MHz·Peak system efficiency >90% at 500 kHz·Low-profile, surface mount package (10 ´ 10 ´ 0.85 mm)·Compatible with any si...

product image

PIP201-12M-3 Picture
See larger image
SeekIC No. : 004462642 Detail

PIP201-12M-3: Features: ·Input conversion range from 3.3 V to 12 V·Output voltages from 0.8 V to 5 V·Capable of up to 20 A continuous output current·Operating frequency up to 1 MHz·Peak system efficiency >90% ...

PIP201-12M-3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PIP201-12M-3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Input conversion range from 3.3 V to 12 V
·Output voltages from 0.8 V to 5 V
·Capable of up to 20 A continuous output current
·Operating frequency up to 1 MHz
·Peak system efficiency >90% at 500 kHz
·Low-profile, surface mount package (10 ´ 10 ´ 0.85 mm)
·Compatible with any single or multi-phase PWM controller.


Application

·High-current DC-to-DC point-of-load converters
·Small form-factor Voltage Regulator Modules
·Microprocessor and memory voltage regulators.


Pinout

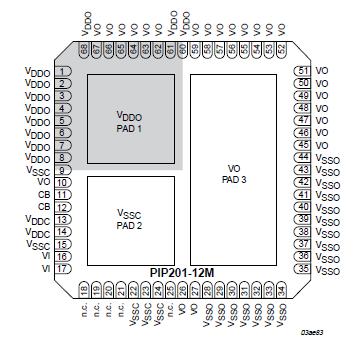

Connection Diagram


Description

The PIP201-12M is designed for use as the power output stage of a synchronous buck DC-to-DC converter. PIP201-12M  contains a MOSFET control IC and two power MOSFET transistors. By combining the power MOSFETs and the driver circuit into a single component, stray inductances are virtually eliminated, resulting in higher switching frequency, lower switching losses and a compact, efficient design.
