PL610-01

Features: `Wide frequency coverage, programmable, advanced oscillator design.`Programmable Odd/Even Divider up to ÷63`Direct oscillation operation with optional programmable features: o Output Drive Strength (4, 8, or 16mA) o 6-bit Odd/Even Output Divider`Input Frequency: o Fundamental Crystal: ...

product image

PL610-01 Picture
See larger image
SeekIC No. : 004463191 Detail

PL610-01: Features: `Wide frequency coverage, programmable, advanced oscillator design.`Programmable Odd/Even Divider up to ÷63`Direct oscillation operation with optional programmable features: o Output Dri...

PL610-01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PL610-01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Wide frequency coverage, programmable, advanced oscillator design.
`Programmable "Odd/Even" Divider up to ÷63
`Direct oscillation operation with optional programmable features:
  o Output Drive Strength (4, 8, or 16mA)
  o 6-bit Odd/Even Output Divider
`Input Frequency:
  o Fundamental Crystal: 5MHz to 130MHz
  o Reference Clock: 1MHz to 130MHz
`Supports CMOS or Sine Wave input clock
`Output Frequency: 20kHz to 130MHz
`Very low Jitter and Phase Noise
`Low current consumption
`Single 1.8V, 2.5V, or 3.3V ± 10% power supply
`Operating temperature range from -40C to 85C


Pinout

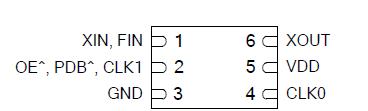

Connection Diagram


Specifications

PARAMETERS
SYMBOL
MIN.
MAX
UNITS
Supply Voltage Range
VDD
-0.5
4.6
V
Input Voltage Range
VI
-0.5
VDD+0.5
V
Output Voltage Range
VO
-0.5
VDD+0.5
V
Storage Temperature
TS
-65
150
Ambient Operating Temperature*
-40
85

Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other conditions above the operational limits noted in this specification is not implied. *Operating temperature is guaranteed by design. Parts are tested to commercial grade only


Description

The PL610 is a high performance general purpose oscillator IC for outputs up to 130MHz. Designed to fit in a small 2 x 1.3mm DFN or 3 x 3mm SOT23 package, the PL610 offers the best phase noise and jitter performance and lowest power consumption of any comparable IC.

In addition, there is a '6' bit optional programmable Odd/Even divider (default= ٪1), and '3'  programmable output drive strengths (4mA, 8mA (default), 16mA) to choose from. The full feature set of the PL610 makes it the most versatile XO for any application.
