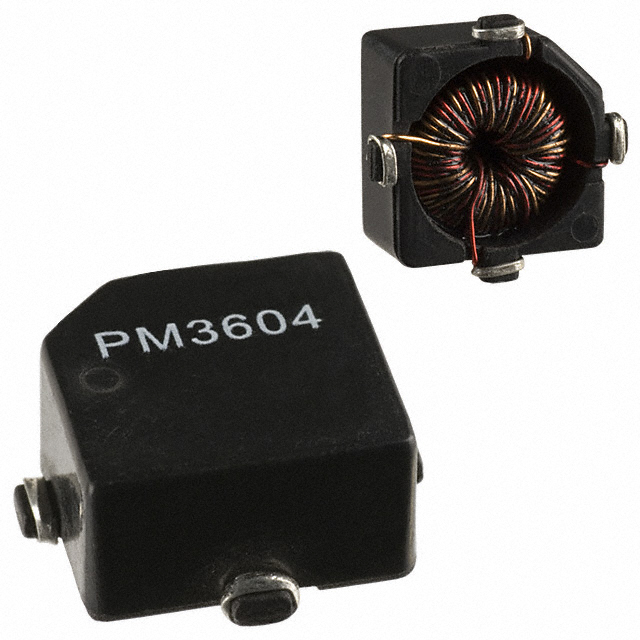

PM3604-50-B: INDUCTOR DUAL TOROID 50UH SMT

PM3604-50-B Data Sheet

Get Latest Price

Part Number:: PM3604-50-B
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PM3602-10 evaluate
Common Mode Inductors (Chokes) 10uH 20%
PM3602-100 evaluate
Common Mode Inductors (Chokes) 100uH 20%
PM3602-100-B evaluate
INDUCTOR DUAL TOROID 100UH SMT

Product Details

Quick Details

Series:	PM3600	Manufacturer:	Bourns Inc.
Inductance Per Coil:	50µH	Number of Coils:	2
Slew Rate :	60 V/us	Current:	640mA
Tolerance:	±20%	Inductance - Connected In Series:	200µH
Inductance - Connected In Parallel:	50µH	DC Resistance (DCR):	240 mOhm Max
Mounting Type:	Surface Mount	Size / Dimension:	0.550" L x 0.452" W (13.97mm x 11.48mm)
Height:	0.265" (6.73mm)

Description

Manufacturer: Bourns Inc.
Number of Coils: 2
Tolerance: ±20%
Mounting Type: Surface Mount
Series: PM3600
Size / Dimension: 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height: 0.265" (6.73mm)
Inductance Per Coil: 50µH
Current: 640mA
Inductance - Connected In Series: 200µH
Inductance - Connected In Parallel: 50µH
DC Resistance (DCR): 240 mOhm Max
Packaging: Bulk

Parameters:

Technical/Catalog Information	PM3604-50-B
Vendor	JW Miller A Bourns Company
Category	Inductors, Coils, Chokes
DC Resistance (DCR)	240.0 mOhm Max
Current	640mA
Number of Coils	2
Mounting Type	Surface Mount
Package / Case	0.550" L x 0.452" W x 0.265" H (13.97mm x 11.48mm x 6.73mm)
Tolerance	±20%
Packaging	Bulk
Inductance Per Coil	100H
Inductance - Parallel	50H
Inductance - Series	200H
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PM3604 50 B PM360450B M1230 ND M1230ND M1230
