PMD1212PMB1-A.(2).F.GN, US $ 7.94-13.66, PMD1212PMB1-A.(2).F.GN DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003439071 Detail

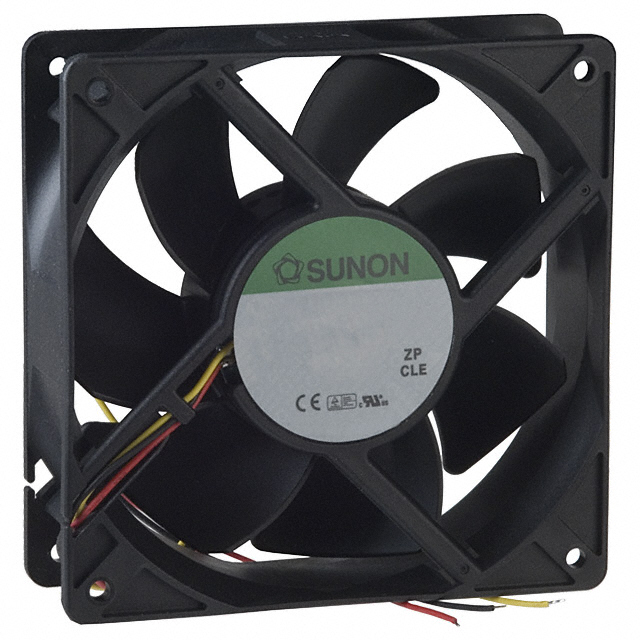

PMD1212PMB1-A.(2).F.GN: FAN 12VDC 120X38MM 190CFM TAC

PMD1212PMB1-A.(2).F.GN Data Sheet

US $ 7.94~13.66 / Piece | Get Latest Price

Part Number:: PMD1212PMB1-A.(2).F.GN
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000

Unit Price
$13.66
$12.71
$11.44
$10.48
$9.85
$8.58
$8.26
$7.94

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PMD10K100 evaluate
DescriptionThe PMD10K100 is designed as one kind of PMC device that provides eight asynchronous se...
PMD1204PBB1-A.(2).GN evaluate
US $4.95 - 8.37 / Piece

FAN 12VDC 40X24MM 23.5CFM
PMD1204PJB1-A evaluate
FAN 12VDC 40X40X48MM HIGH OUTPUT

Product Details

Quick Details

Series:	PMD	Manufacturer:	Sunon Fans
Fan Type:	Tubeaxial	Size / Dimension:	Square - 120mm L x 120mm H x 38mm W
Voltage - Rated:	12VDC	Power (Watts):	19.2W
Features:	Speed Sensor (Tach)	RPM:	4200 RPM
Noise:	54 dB(A)	Static Pressure:	0.650 in H2O (161.9 Pa)
Package / Case :	SOP-20	Air Flow:	190.0 CFM (5.38m³/min)
Termination:	3 Wire Leads	Bearing Type:	Ball

Description

Manufacturer: Sunon Fans
Fan Type: Tubeaxial
Voltage - Rated: 12VDC
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Bearing Type: Ball
RPM: 4200 RPM
Features: Speed Sensor (Tach)
Termination: 3 Wire Leads
Size / Dimension: Square - 120mm L x 120mm H x 38mm W
Series: PMD
Noise: 54 dB(A)
Power (Watts): 19.2W
Static Pressure: 0.650 in H2O (161.9 Pa)
Air Flow: 190.0 CFM (5.38m³/min)

Parameters:

Technical/Catalog Information	PMD1212PMB1-A.(2).F.GN
Vendor	Sunon Fans
Category	Fans, Thermal Management
Voltage - Rated	12VDC
Power (Watts)	19.2W
Bearing Type	Ball
Size / Dimension	Square - 120mm L x 120mm H x 38mm W
Air Flow	190 CFM
Features	Speed Sensor (Tach)
Termination	3 Wire Leads
Fan Type	Tubeaxial
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PMD1212PMB1 A 2 F GN PMD1212PMB1A2FGN 259 1375 ND 2591375ND 259-1375
