Position: Home  > All Categories> Integrated Circuits (ICs) > PMD4809PTB1-A.(2).GN

PMD4809PTB1-A.(2).GN

FAN 48VDC 92X25MM 77.0CFM

product image

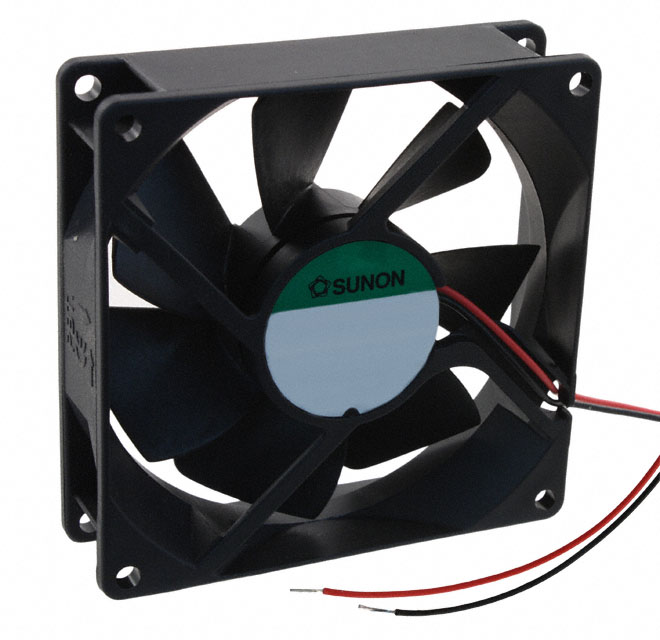

PMD4809PTB1-A.(2).GN Picture
See larger image
SeekIC No. : 003439418 Detail

PMD4809PTB1-A.(2).GN: FAN 48VDC 92X25MM 77.0CFM

PMD4809PTB1-A.(2).GN Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PMD4809PTB1-A.(2).GN
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: PMD Manufacturer: Sunon Fans
Fan Type: Tubeaxial Size / Dimension: Square - 92mm L x 92mm H x 25mm W
Voltage - Rated: 48VDC Power (Watts): 6.70W
Features: - RPM: 4200 RPM
Noise: 48 dB(A) Package / Case : SOP-20
Static Pressure: 0.370 in H2O (92.2 Pa) Air Flow: 77.0 CFM (2.18m³/min)
Termination: 2 Wire Leads Bearing Type: Ball

Description

Manufacturer: Sunon Fans
Fan Type: Tubeaxial
Features: -
Termination: 2 Wire Leads
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Size / Dimension: Square - 92mm L x 92mm H x 25mm W
Bearing Type: Ball
RPM: 4200 RPM
Noise: 48 dB(A)
Series: PMD
Voltage - Rated: 48VDC
Static Pressure: 0.370 in H2O (92.2 Pa)
Air Flow: 77.0 CFM (2.18m³/min)
Power (Watts): 6.70W


Parameters:

Technical/Catalog InformationPMD4809PTB1-A.(2).GN
VendorSunon Fans
CategoryFans, Thermal Management
Voltage - Rated 48VDC
Power (Watts)6.7W
Bearing TypeBall
Size / DimensionSquare - 92mm L x 92mm H x 25mm W
Air Flow76.5 CFM
Features-
Termination2 Wire Leads
Fan TypeTubeaxial
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PMD4809PTB1 A 2 GN
PMD4809PTB1A2GN
259 1422 ND
2591422ND
259-1422
