PNA1801L

NPN PHOTO TRANSISTOR

product image

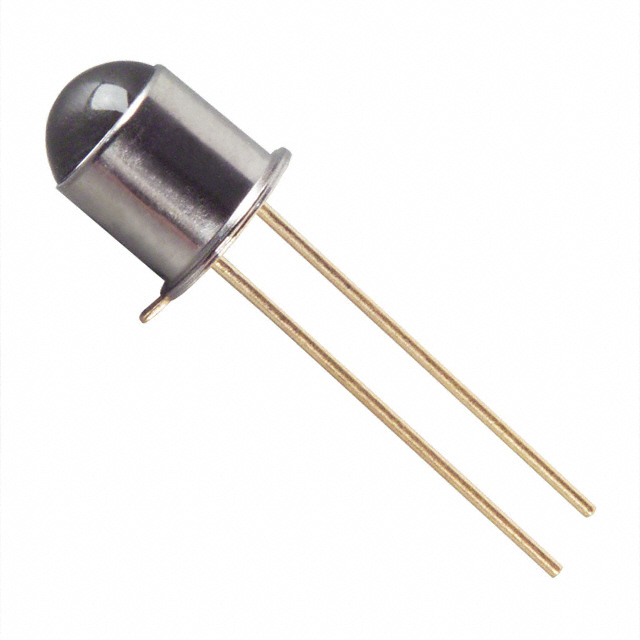

PNA1801L Picture
See larger image
SeekIC No. : 004137318 Detail

PNA1801L: NPN PHOTO TRANSISTOR

PNA1801L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PNA1801L
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: * Manufacturer: Panasonic Electronic Components - Semiconductor Products
Voltage - Collector Emitter Breakdown (Max): 30V Maximum Operating Temperature : + 125 C
Current - Collector (Ic) (Max): 20mA Current - Dark (Id) (Max): 500nA
Wavelength: 800nm Viewing Angle: 60°
Power - Max: 100mW Mounting Type: Through Hole
Orientation: Top View

Description

Series: *
Power - Max: 100mW
Orientation: Top View
Viewing Angle: 60°
Mounting Type: Through Hole
Wavelength: 800nm
Current - Collector (Ic) (Max): 20mA
Voltage - Collector Emitter Breakdown (Max): 30V
Package / Case: T-1
Current - Dark (Id) (Max): 500nA
Manufacturer: Panasonic Electronic Components - Semiconductor Products


Features:

High sensitivity
Wide spectral sensitivity, suited for detecting GaAs LEDs
Small size, high output power, low cost
ø 3 plastic package


Specifications

Parameter
Symbol
Ratings
Unit
Collector to emitter voltage
VCEO
30
V
Emitter to collector voltage
VECO
5
V
Collector current
IC
20
mA
Collector power dissipation
PC
100
mW
Operating ambient temperature
Topr
25 to +85
˚C
Storage temperature
Tstg
30 to +100
˚C
